Rod-top steel tubular fence with a structure of vertical picket extended through the rails. It is a type of ornamental fencing which is low maintenance, no need for frequent repainting as traditional wrought iron fencing but remain visually attractive and strong enough for secure your property. Compared with aluminium fence, steel fence is longevity without sag under weight or stress. Classify by the number of horizontal rails, there are 2-rail steel fence, 3-rail steel fence, 4-rail rod-top steel fence optional.
As a experienced manufacture, we always adhere to 360° manual welding rather than by automated tools to prevent any leakage of welding and ensure the most appropriate strength. Thus, we are competent for standard and special styles and sizes of steel fence for courtyard, poolside, roadside, airport, station, factory, school, estates, garden & lawn and other sites need security protection.
RSF-01: Rod-top steel fence
System components
Specifications
| Panel specification | |
|---|---|
| Dimensions (H × W) |
6' × 8', 10' × 8', 7' × 8', 8' × 8' |
| Residential use dimensions (H × W) |
3' × 8', 3.5' × 8', 4' × 8', 4.5' × 8', 5' × 8' optional. |
| Dimensions (H × W) |
6' × 8', 10' × 8', 7' × 8', 8' × 8' |
| Material | Q235 steel tube. |
| Horizontal rail O.D. | 1.26" × 1.26", 1.58" × 1.58", 1.78" × 1.78", 2" × 2", optional. |
| Horizontal rail wall thickness | 0.05"–0.08". |
| Vertical picket O.D. | 0.63" × 0.63", 0.75" × 0.75", 1" × 1". |
| Vertical picket wall thickness | 0.03"–0.48". |
| Gap | 4.15", 4.33", 4.53", 4.57", 4.9", 5.12" optional. |
| Yield strength | 350Mpa. |
| Surface treatment |
Full hot dipped galvanized. Pre-galvanized and powder coated. |
| Galvanizing thickness | G90, G60. |
| Color | Silver, gray, black, etc. |
| Fence post Specification | |
| Material | Steel tube. |
| Dimensions (O.D. × TH) |
2.36" × 2.36" × 0.08" 2.56" × 2.56" × 0.08" 3.15" × 23.15" × 0.08" 4" × 4" × 0.12" optional. |
| Post height | 8.9', 10' optional. |
| Surface treatment |
Full hot dipped galvanized. Pre-galvanized and powder coated. |
| Galvanizing thickness | G90, G60. |
| Color | Silver, gray, black, etc. |
| Accessory List | 1pcs post cap, 4 set brackets, 12 pcs self drilling screw. |
Rod-top inventive steel fence panel
- 360° full welded by hand. Horizontal rails with equality punched holes and upright pailings are 360° full welded with strong welding point but small welding spot to make sure there is no split weld even long time service.
- Lock uninvitors and intruders out. Upright pailings picket with crimped spear top is deterrent for any unauthorized entry. Beside, the narrow horizontal rail space makes there is no foot holds to climb over.
- Crimped spear-top and flat-top optional. There are spear-top and curved spear-top the two type of steel fence for your high level security requirement. of course, you can choose flat-top steel fence to minimize unnecessary injuries.
- Various styles optional. AS a defensive fencing which combined with aesthetics, there are 2-rail steel fence, 3-rail steel fence and 4-rail steel fence for your different esthetic requirements.
RSF-02: 2-rail rod straight top steel fence

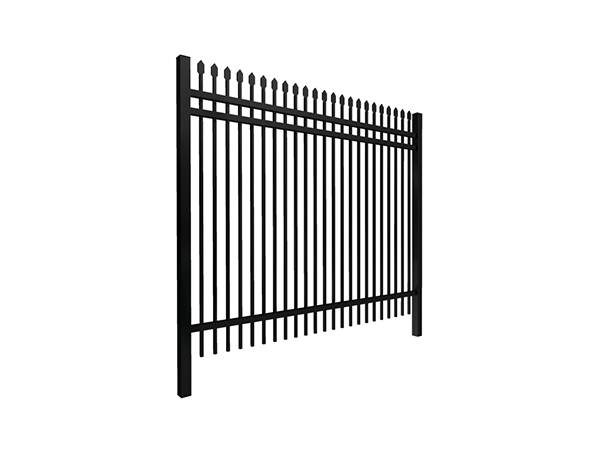

RSF-03: 3-rail straight rod top steel fence
RSF-04: 4-rail straight rod top steel fence

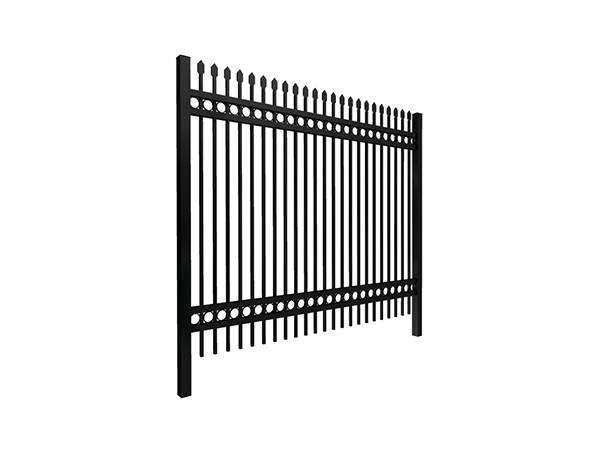

RSF-05: Rod top steel fence with decorative rings
- Strong corrosion surface treatment.
- Full hot dipped galvanized. G90 or G60 galvanized coating on both inside and outside of the steel tube. Thus, the whole steel tube surface is protected by anticorrosive coating. Service life can reach more than 25 years.
- Pre-galvanized and powder coating. Corrosion resistance galvanized coating plus colorful powder coating make the steel fencing both durable and attractive.
RSF-06: Hot dipped galvanized steel fence
RSF-07: Pre-galvanized & powder coated steel fence
Steel Fence Panel Production Process
Specified Grade Of Steel Tube – Straighten & Cutting – punching – Welding – Pre-Galvanizing – Parkerizing – Powder/PVC coating – Packing
Specified Grade Of Steel Tube – Straighten & Cutting – punching – Welding – hot dipped galvanizing – Powder/PVC coating – Packing
RSF-08: Steel fence production process
Fence post
Important accessory play a role of supporting and tightening. The tubular posts are driven into the ground by hand or pneumatic post pounder. The most commonly used specification including 2.56" × 2.56" × 0.08", 2.36" × 2.36" × 0.08", 3.15" × 3.15" × 0.08", 4" × 4" × 0.12" optional. For residential use, 2" × 2" × 0.05" is a regular size.
1 set of steel fence post include 1pcs post cap, 4 set brackets, 12 pcs self drilling screw.
RSF-09: Post used for steel fence
RSF-10: Post cap for steel fence post
RSF-11: Mounting brackets & screws
Production process
Tube Cutting – Punching Holes – Hot-Dipped Galvanized – Sandblasting – Powder/PVC Coating – Assembly
Packing and delivery details
Galvanized steel fencing panels are wrapped with bubble then delivered in steel pallets, different loading quantity according to different goods and container sizes.
| Packed in Steel Pallet | |
|---|---|
| 1 × 40' HC for 8' × 10' | 290 sets (1 panel + 1 post + 1pcs post cap + 4 set brackets + 12 pcs self drilling screw). |
| 1 × 40' HC for 6' × 8' | 408 sets (1 panel + 1 post + 1pcs post cap + 4 set brackets + 12 pcs self drilling screw). |
