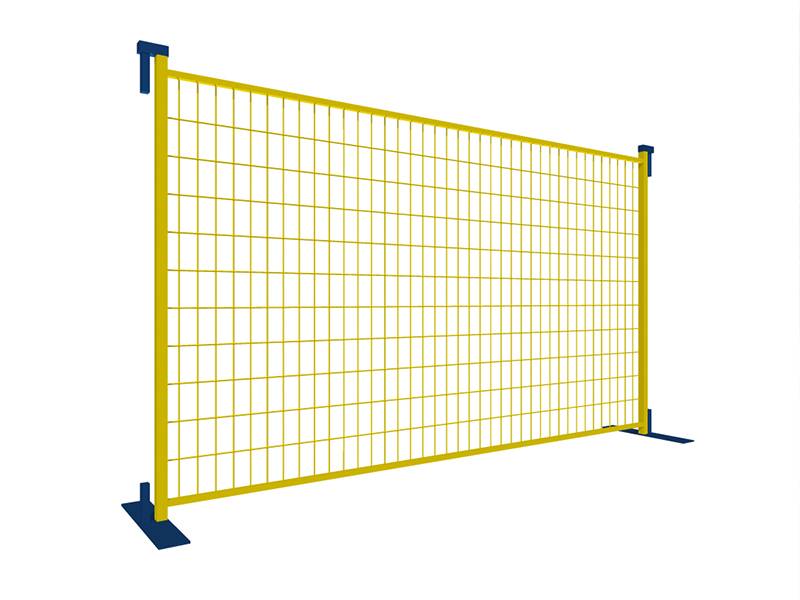

CTF-01: Standard 6' × 10' Canada temporary fence.

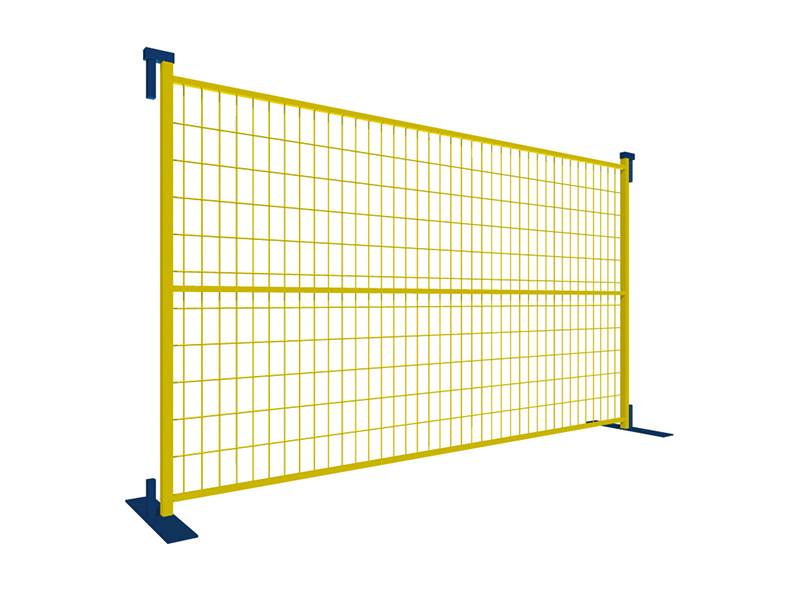

CTF-02: 6' × 10' Canada temporary fence with horizontal support.

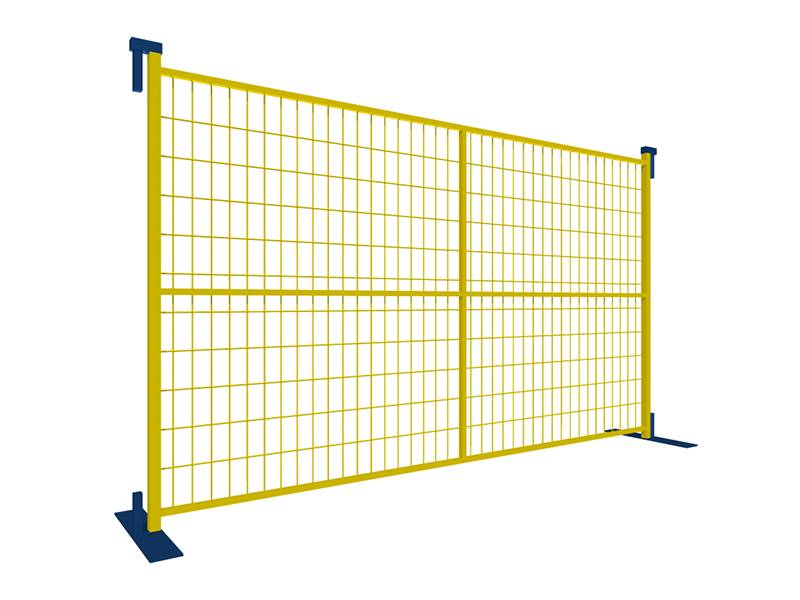

CTF-03: 6' × 10' Canada temporary fence with cross support.
6' × 10' CA temporary fencing owns 6' height and 10' width. Use high quality mild steel wire and tube as raw material, after welding with high-frequency welding technology. Plus strong corrosion treatment of electric galvanized before powder coated or hot dipped galvanized after welding. Service life can be up to 10 years.
Besides, 6' × 10' CA temporary fencing with wire diameter of 4.0 mm, frame outside diameter of 30 × 30 mm, superadd the middle horizontal pipe outside diameter of 25 × 25 mm, The finished Canada welded temporary fencing is strong enough and durable for any site needing security or privacy.
System components
Specifications
| Panel Specification | ||
|---|---|---|
| Dimensions (H × W) |
6' × 10' (equal to 1.8 × 3 m). | |
| Wire diameter | 4.0, 6.0 mm optional. | |
| Mesh opening | 50 × 100, 50 × 150, 75 × 150 mm optional. | |
| Frame O.D. × TH | 30 × 30 × 2, 40 × 40 × 2 mm optional. | |
| Frame TH | 2.0–2.5 mm. | |
| Middle horizontal pipe O.D. | 25 × 25 × 2 mm. | |
| Surface treatment |
Electric galvanized before powder coated. Hot dipped galvanized after welding. |
|
| Color | Dark green, yellow, red, blue, other RAL colors. | |
| Fence feet Specification | ||
| Material | Steel plate, steel solid rod, steel pipe. | |
| Dimensions (H × W × TH) |
600 × 110 × 8, 900 × 80 × 7 mm optional. | |
| Hole size O.D. | 19 mm. | |
| Interior round steel rod/pipe | 30 mm O.D. × 150 mm H. | |
| Exterior square steel rod/pipe | 30 × 30 × 150 mm. | |
| Rod space | 30 mm. | |
| Surface treatment | Electric galvanized before powder coated. | |
| Top Clips Specification | ||
| Material | Steel plate, steel solid rod, steel pipe. | |
| Coupler top plate/pipe | 110 × 40 × 8 mm. | |
| Left round steel rod/pipe | 30 mm O.D. × 150 mm H. | |
| Right square steel rod/pipe | 30 × 30 × 150 mm H. | |
| Surface treatment | Electric galvanized before powder coated. | |
| Clamp Specification | ||
| Clamp center distance | 80, 90, 100 mm optional. | |
| Applied post O.D. | 25, 28, 32, 38, 40, 42 mm optional. | |
| Clamp TH | 4 mm. | |
| Bolt | Length available 100/60/40 mm with a 10 mm and 8 mm outer diameter. | |
| Nut | 15.9 mm, 17 mm optional. | |
| Surface Treatment | Hot dipped galvanized. | |
| Weight | 0.42 kg/set. | |
| Accessory List | 2 pieces clamps with 1 bolt and 1 nut. | |
6' × 10' Canada Temporary Fencing Panels
- Manual welding. Stick to manual welding for the purpose of the most appropriate strength.
- 360° full welding. Make sure a firm welded structure. This can ensure that the temporary fencing is not damaged during the frequent moving process, and will not be corroded even in bad environment.
-
Smooth surface and no burrs. Eliminate every little bit of burr is the essential process. This is for prevent any scratch during set up and tear down.
CTF-04: Manual welding
CTF-05: 360° full welding point
CTF-06: Smooth surface and no burrs
- Strong corrosion surface treatment.
- Electric galvanized before powder coated. This can not only guarantee the fastness of galvanized coating to prevent the corrosion of acid rain and ultraviolet radiation, but also make the temporary fencing have good aesthetic effect.
- Hot dipped galvanized after welding. To ensure at least 70 µm thickness of zinc coating. Service life can reach more than ten years.
CTF-07: Powder coated CA temp fence panel
CTF-08: Hot dipped galvanized CA temp fence panel
-
Various colors are available. We can provide variety of colours by powder coated surface treatment. Such as red, yellow, blue, gray, black, green, etc.
CTF-09: Red.
CTF-10: Blue.
CTF-11: Dark green.
CTF-12: Orange.
CTF-13: Yellow.
CTF-14: Grass green.
Production process
Galvanized steel wire – Straighten & cut short – Welded – Parkerising – PVC coated/sprayed – Packing – Shipment
Low carbon steel wire – Straighten & cut short – Welded –Hot-dipped galvanized – Packing – Shipment
CTF-15: Steel pipe for Canada temporary fence
CTF-16: Manual welded frame of CA temp fence
CTF-17: Electrostatic spraying plant
CTF-18: Hot-dipped galvanized plant
CTF-19: Packed Canada temporary fence
CTF-20: Canada temporary fence shipment
Platy Steel Base
- No need to dig holes or laying foundations. Only need to place the base on a flat surface. If necessary, there are two 19 mm diameter pin holes to peg the footing on the ground when the install completes.
- Adapt cement or asphalt areas. With good regional adaptability, the ground is not required to be absolutely flat, neither cement or asphalt areas.
- Stable enough. Technical staff will give a reliable advice of platy fencing feet size according to the panel dimensions.
- Three different styles are available. We provide flowing three types of base connector clip for your standard and special demand.
CTF-21: Round and square steel rod fence feet
CTF-22: Round and square steel pipe fence feet
CTF-23: CA temp fence with added fastening pipe
Top Clips
A special fencing coupler which popular in Canada and North America, it gives a secure clamp to the CA temporary fencing. In addition, it provide a flexible isolation angle for requirement of rapid re-configuration of the construction area.
- Two different styles are available. We provide following two types of top clips for your standard and special demand. Warm Tip: the pipe leg can be replaced by a round rod by your request.
CTF-24: Top clip with round steel pipe
CTF-25: Top clip with round & square pipe
- Easy installation. Just need to insert its legs to the fences.
CTF-26: Assembled top clip of Canada temporary fence
Packing details
Canada welded temporary fencing panels are delivered in steel pallets, different loading quantity according to different goods and container sizes.
| Packed in Steel Pallet | |
|---|---|
| 1 × 40' HC for 6' × 10' | 294 sets (1 panel + 1 fence feet + 1 top clips/1 set of clamp with bolt and nut). |
