Custom Temporary Fencing – Extra Large & Specific Use

Our custom temporary fencing are best suited for the resource and hire industries, which can be customize different specifications according different applications.

They all comply with A.S. 4687-2007 for Temporary Fencing & Hoardings to withstand the harshest environments and high corrosive environments.

System components

Specifications

Extra large custom temporary fence drawing.

CTF-01: Extra large temporary fence.

Custom Panel 1 – Extra large type

  • Panel Size: 3300 mm (L) × 2100 mm (H).
  • Frame Size: 32 mm O.D. × 2.0 mm thickness.
  • Infill Mesh: 4 mm horizontal, 4 mm vertical, 150 mm × 60 mm spacing.
  • Surface Treatment: Pre-galvanised 42 microns & Hot-dipped galvanized 90 microns.

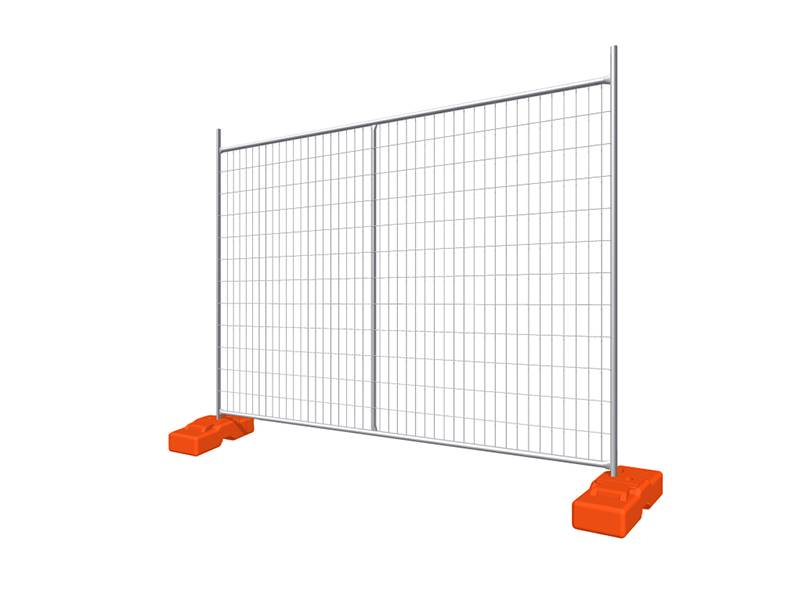

Heavy duty custom temporary fence drawing.

CTF-02: Heavy duty temporary fence.

Custom Panel 2 – heavy duty type

  • Panel Size: 2650 mm (L) × 2100 mm (H).
  • Frame Size: 32 mm O.D. × 2.0 mm thickness.
  • Infill Mesh: 4 mm horizontal, 4 mm vertical, 150 mm × 60 mm spacing.
  • Surface Treatment: Pre-galvanised 42 microns & Hot-dipped galvanized 90 microns.

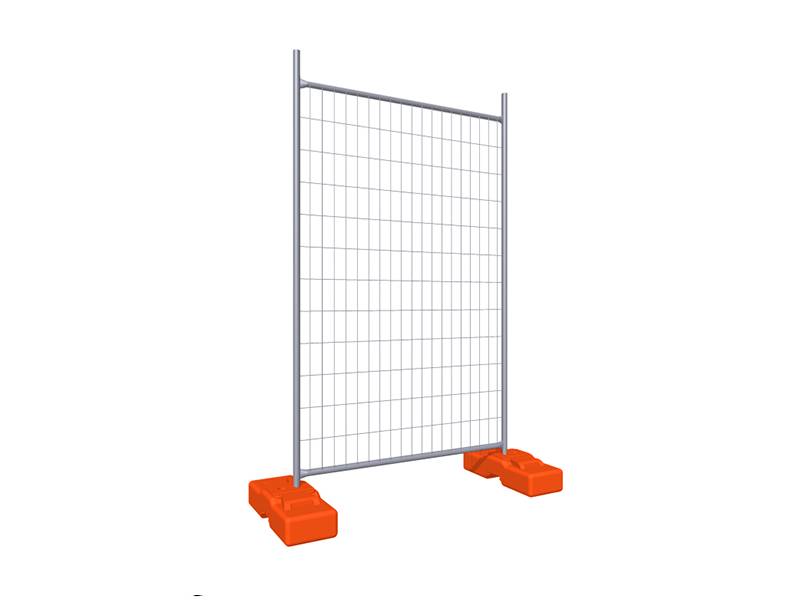

Half panel custom temporary fence drawing.

CTF-03: Half panel temporary fence.

Custom panels 3 – Half Panels

  • Panel Size: 1200 mm (L) × 2100 mm (H).
  • Frame Size: 32 mm O.D. × 1.5 mm thickness.
  • Infill Mesh: 3 mm horizontal, 3 mm vertical, 150 mm × 60 mm spacing.
  • Surface Treatment: Pre-galvanised 42 microns & Hot-dipped galvanized 90 microns.
  • Suitable applications: Gate or next to gates or where a smaller panel is more suitable to your needs.

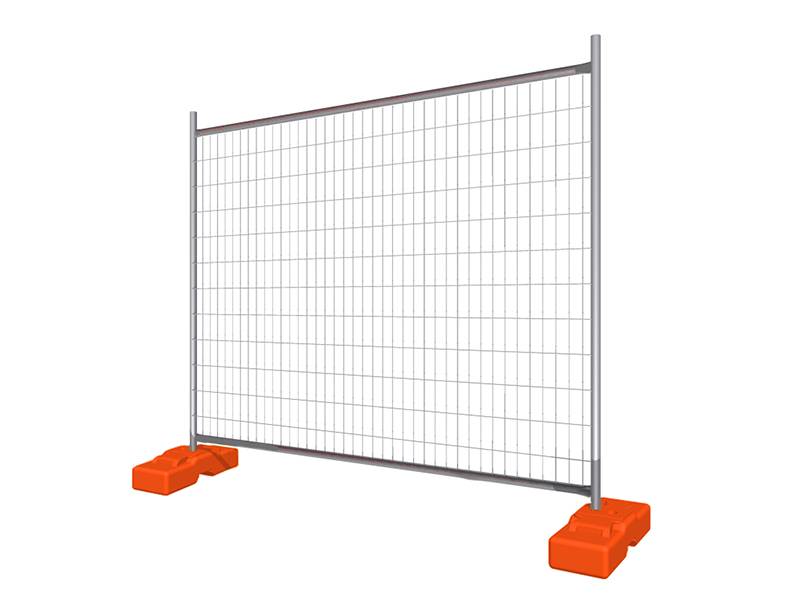

40 mm frame heavy duty custom temporary fence drawing.

CTF-04: 40 mm frame heavy duty temporary fence.

Custom panels 4 – Heavy Duty 40 mm Frame Panel

  • Panel Size: 2400 mm (L) × 2100 mm (H).
  • Frame Size: 40 mm O.D. × 1.5 mm thickness.
  • Infill Mesh: 4 mm horizontal, 4 mm vertical, 150 mm × 60 mm spacing.
  • Surface Treatment: Pre-galvanised 42 microns & Hot-dipped galvanized 90 microns.

Temporary fencing panels

Strong & Safe welded structures

  • 360° full welding. 360° full welding technology contributes strong infill mesh and frame structure. It can prevent fracture during its long service life.
  • Flattened steel pipe. During welding, the steel pipe which will welded with infill meshes will be flattened. In this way, it can make the welding point more sturdy. Besides, it can save some spaces during transporting.
  • No burrs. Additional, all the weld points will be treated to eliminate small burrs. In this way, we can ensure safety loading, unloading and installation. It can protect peoples from accident injuries when they contact with temporary fencing panels.

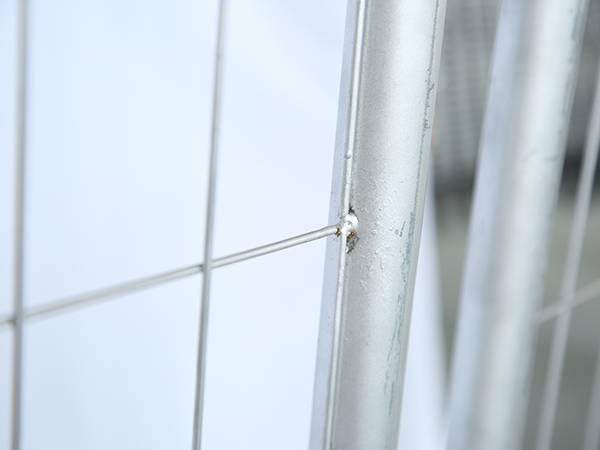

A detail of welding point of fence panel and panel frame.

CTF-05: Solid welding point

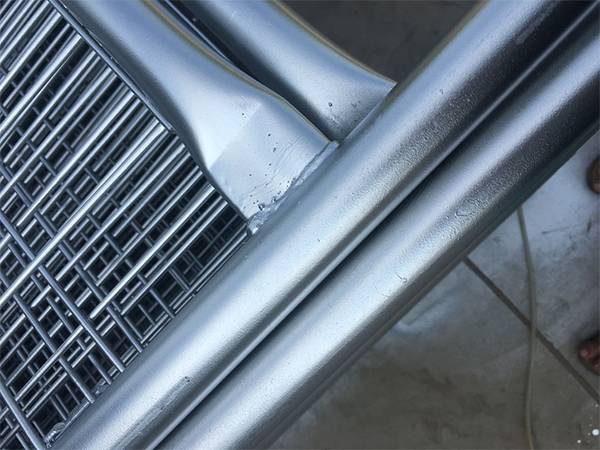

A detail of flattened pipes of temporary fencing.

CTF-06: Flattened steel pipe

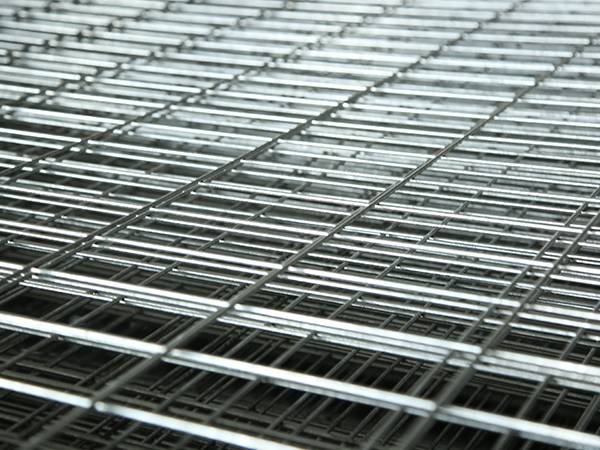

A detail of smooth surface of temporary fencing.

CTF-07: Smooth panel surface

Different Surface treatment

  • Pre-galvanized – Economical but efficient

    Galvanized steel wires and steel pipes will be welded together and the weld points which the zinc coating is broken during welding will be treated with galvanization spraying. Weld points on the steel pipe will be painted with antirust paint and then galvanization spraying. This finish type can ensure at least 42 micron zinc coating thickness, which can satisfy normal applications.

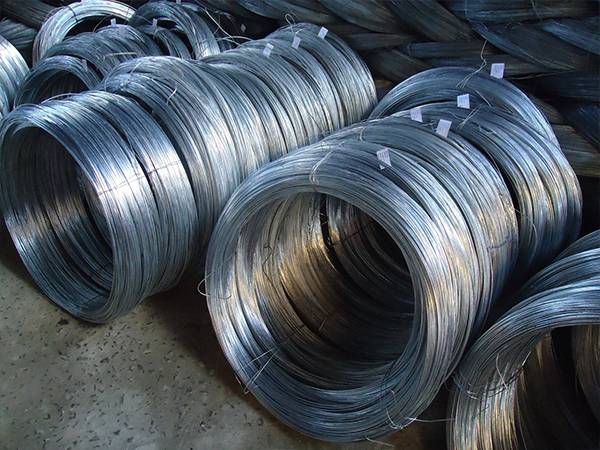

    Several coils of temporary fencing on the ground.

    CTF-08: Raw material

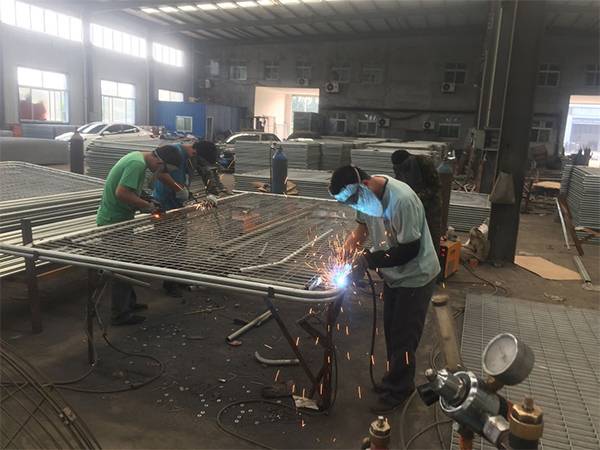

    Several workers are hand welding temporary fencing.

    CTF-09: Welding

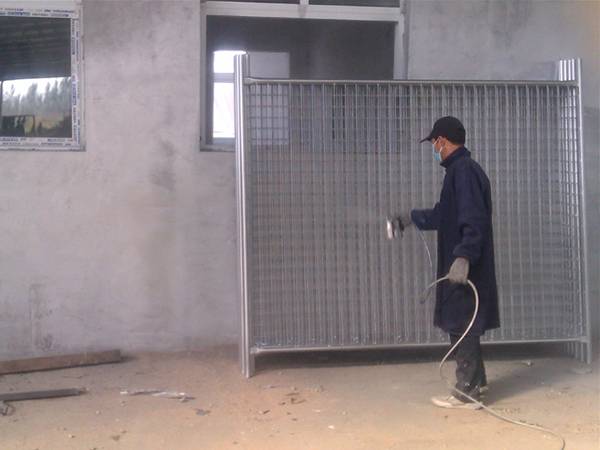

    A worker is sparying temporary fencing.

    CTF-10: Spraying

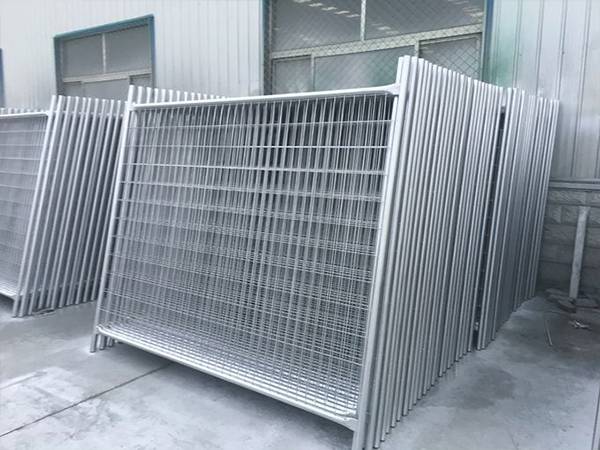

    Several pieces of temporary fencing panels are leaning on the wall.

    CTF-11: Complete

  • Hot dipped galvanized after welding – More stable & Anti-corrosive

    The raw material of temporary fencing panel, including steel wires and steel pipes are low carbon steel. They will be welded together in 360° full welding. Then the temporary fencing will be dipped in the container full of hot galvanization. In this way, each parts of temporary fencing can be coated with zinc evenly to ensure the long service life.

    The hot dipped galvanized temporary fencing can ensure at least 90 microns zinc coating. It is suitable for high corrosive areas.

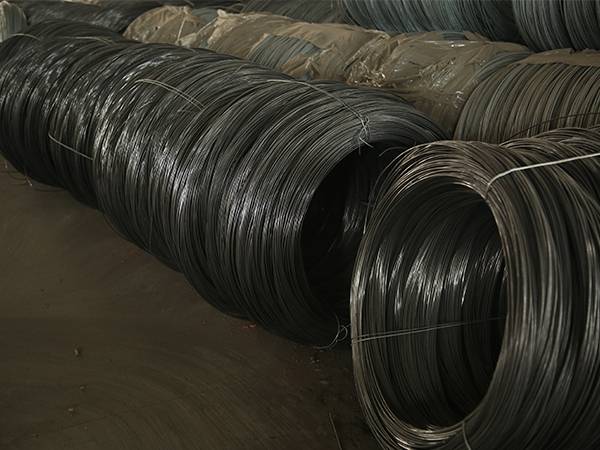

    Several rolls of black wires on the ground.

    CTF-12: Raw material

    A worker is welding the fence panels.

    CTF-13: Welding

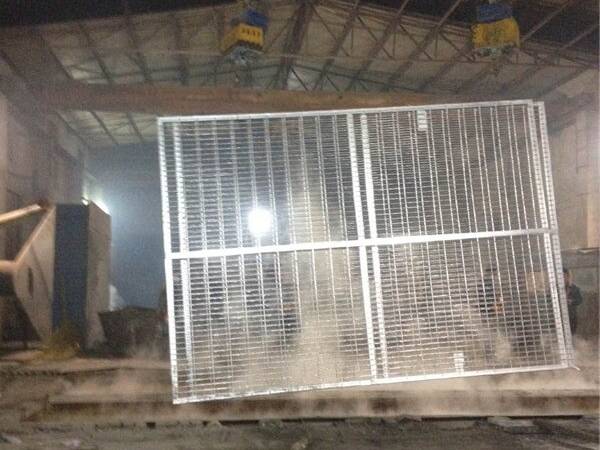

    Several workers are hot dipped galvanised treated.

    CTF-14: Hot dipped galvanized

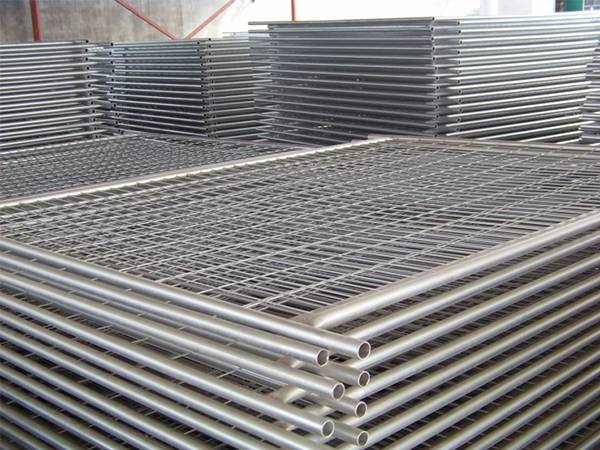

    Several temporary fencing panels in the warehouse.

    CTF-15: Complete

Plastic bases

  • Three different types options. Temporary fencing is commonly equipped with plastic bases/feet. Our company can produce three different types plastic bases to suit temporary fence panels and using conditions.

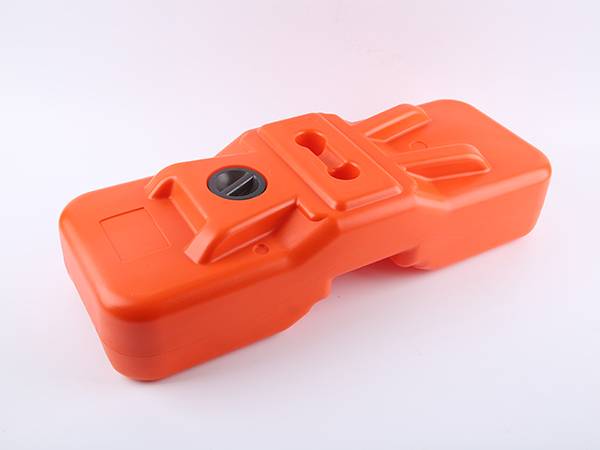

    A type 1 temporary fencing feet on gray background.

    CTF-16: Type 1 plastic base.

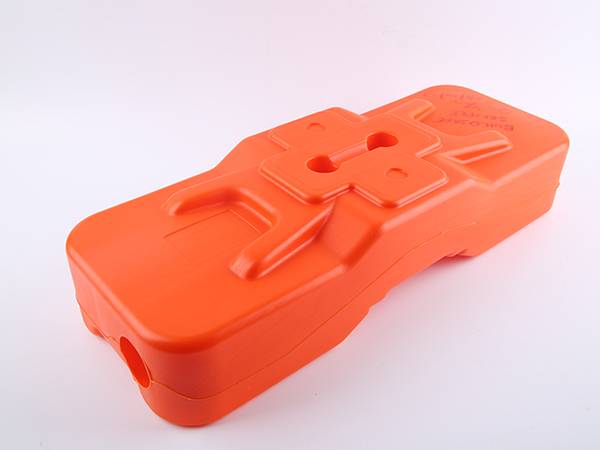

    A type 2 temporary fencing feet on gray background.

    CTF-17: Type 2 plastic base.

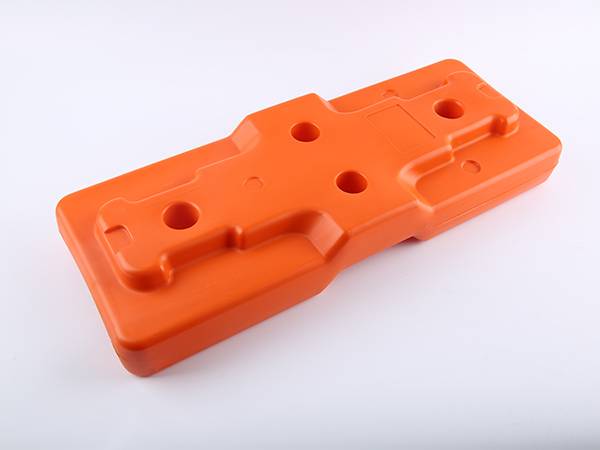

    A type 3 temporary fencing feet on gray background.

    CTF-18: Type 3 plastic base.

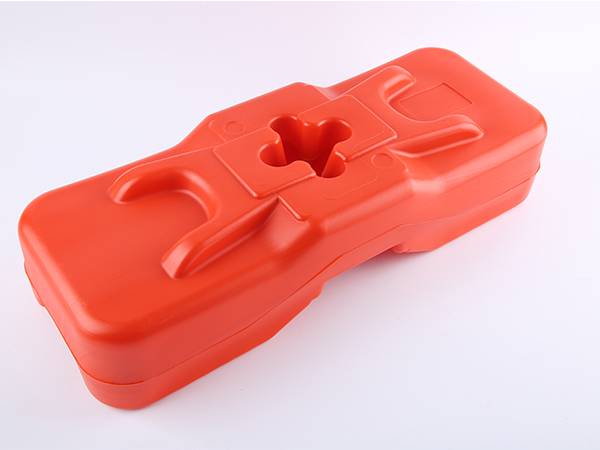

    A type 4 temporary fencing feet on gray background.

    CTF-19: Type 4 plastic base.

  • UV & anti-aging – 5 years guarantee. Our temporary fencing feet adopt high density polyethylene materials containing at least 3 types anti-ultraviolet agents: UV 220, UV 531 and UV 770, which come with a 5 year UV and anti-aging guarantee to accommodate to the Australian climate. The qualified plastic coating contribute to fade-proof performance to maximize health and eliminate safety risks.
  • Multiple colors. Except for safety orange colors, we can supply customized colors for different site applications. Just tell us your requirements, you will get satisfied products.

Clamps

Our temporary fence clamps are manufactured from high quality steel plates into qualified clamps, which are meeting Australian standard A.S. 4687-2007 for Temporary Fencing & Hoardings.

  • Hot dipped galvanized for min 42 microns zinc coating.
  • Sturdy to withstand the harshest environments.
  • Suit 32 mm, 40 mm or other specs steel pipes and bases.

Other additions options

A green shade cloth is installed on the temporary fencing.

CTF-20: Shade Cloth

A customized logo is attached on the temporary fencing panel.

CTF-21: Customized Logos

A bracing is installed on the temporary fencing panel with plastic feet fastened.

CTF-22: Braces

Three warning signs are attached on the temporary fencing.

CTF-23: Customized Warning Signs

A dog bar is fastened at the bottom of temporary fencing.

CTF-24: Dog Bars

Four lines of barbed wires are fastened to the top of temporary fencing.

CTF-25: Barbed Wires

A handrail is fixed on the temporary fencing panels.

CTF-26: Handrails

Razor wires are attached at the top of temporary fencing.

CTF-27: Razor Wires

Packing details

The temporary fencing panels and plastic bases are delivered in steel pallets.

It has different loading quantity according to different goods and container sizes.
