Hinge Joint Fence – Once Install, Cost Effective & Durable Against Hit

A picture show cattle in the galvanized hinge joint fence.

HJF-01: Galvanized steel hinge joint fence.

Hinge joint fence also known as hinge knotted field fence. Galvanized steel stay wire are individually cut and wrapped on the horizontal line wire, the robust hinge joints eliminated unwieldy wraps, twists and ties. The unique sturdy but flexible structure provide maximum strength and tensile strength to withstands impact from horse, cows, pigs, deer and goats.

The height, length, and wire diameter are all can be customized by your request. Here is your best choice of hinge joint field fence for grass field husbandry, ranch, forestry center, autobahn and so on.

Light Duty Hinge Joint Fence

Lighter grade field fence for less destructive applications. Generally recommended for sheep and goats.

  • Top and bottom wire
    • Diameter: 2.5 mm.
    • Tensile strength: ≥ 710 N/mm2.
  • Other wires
    • Diameter: 1.9 mm.
    • Tensile strength: 440–540 N/mm2.
A diagram picture of light duty hinge joint fence.

HJF-02: Light duty hinge joint fence diagram.

Table 1: Specification of Light Duty Hinge Joint Fence
Type Fence height (cm) Horizontal wire No. Vertical wires spacing (cm) Roll length (m)
200/24/15 200 24 15/20/30 optional 50-300
200/20/15 200 20 15/20/30 optional 50-300
200/17/15 200 17 15/20/30 optional 50-300
148/18/15 148 18 15/20/30 optional 50-300
147/10/30 147 10 15/20/30 optional 50-300
122/9/15 122 9 15/20/30 optional 50-300
100/14/15 100 14 15/20/30 optional 50-300
100/8/15 100 8 15/20/30 optional 50-300
80/8/15 80 8 15/20/30 optional 50-300
60/6/15 60 6 15/20/30 optional 50-300

Light duty hinge joint fence application

A flock of sheep in the hinge joint fence.

HJF-03: Hinge joint fence for hirsel.

A head of white little lamb is looking out through the hinge joint fence.

HJF-04: Hinge joint fence for lamb.

This is a scattered chicken farm with hinge joint fence.

HJF-05: Hinge joint fence for chicken farm.

Heavy Duty Hinge Joint Fence

Medium grade field fence ideal for normal destructive applications. Generally recommended for pigs and cows.

  • Top and bottom wire
    • Diameter: 3.0 mm.
    • Tensile strength: ≥ 710 N/mm2.
  • Other wires
    • Diameter: 2.5 mm.
    • Tensile strength: 440–540 N/mm2.
A diagram picture of heavy duty hinge joint fence.

HJF-06: Heavy duty hinge joint fence diagram.

Table 2: Specification of Heavy Duty Hinge Joint Fence
Type Fence height (cm) Horizontal wire No. Vertical wires spacing (cm) Roll length (m)
200/17/15 200 17 15/20/30 optional 50-300
140/11/15 140 11 15/20/30 optional 50-300
124/9/15 124 9 15/20/30 optional 50-300
100/8/15 100 8 15/20/30 optional 50-300
80/8/15 80 8 15/20/30 optional 50-300

Heavy duty hinge joint fence application

A head of brown cattle is looking out through the hinge joint fence.

HJF-07: Hinge joint fence for cattle's rangeland.

There are four head of cows in the hinge joint fence.

HJF-08: Hinge joint fence for cows farm.

Two head of pigs are walking in the field with hinge joint fence and added bottom chicken wire.

HJF-09: Hinge joint fence for pigs feeding farm.

Super Heavy Duty Hinge Joint Fence

Generally recommended for horse.

  • Top and bottom wire
    • Diameter: 4.0 mm.
    • Tensile strength: ≥ 710 N/mm2.
  • Other wires
    • Diameter: 3.0 mm.
    • Tensile strength: 440–540 N/mm2.
A diagram picture of super heavy duty hinge joint fence.

HJF-10: Super heavy duty hinge joint fence diagram.

Table 3: Specification of Super Heavy Duty Hinge Joint Fence
Type Fence Height (cm) Horizontal Wire Quantity Vertical Wires Spacing (cm) Roll Length (m)
164/12/15 164 12 15/20/30 optional 50-300
140/11/15 140 11 15/20/30 optional 50-300
124/9/15 124 9 15/20/30 optional 50-300
120/10/15 120 10 15/20/30 optional 50-300
100/9/15 100 9 15/20/30 optional 50-300
100/8/15 100 8 15/20/30 optional 50-300
100/6/15 100 6 15/20/30 optional 50-300
80/8/15 80 8 15/20/30 optional 50-300

Super heavy duty hinge joint fence application

A head of brown horse is eating grass in the meadow with hinge joint fence.

HJF-11: Hinge joint fence for horse meadow.

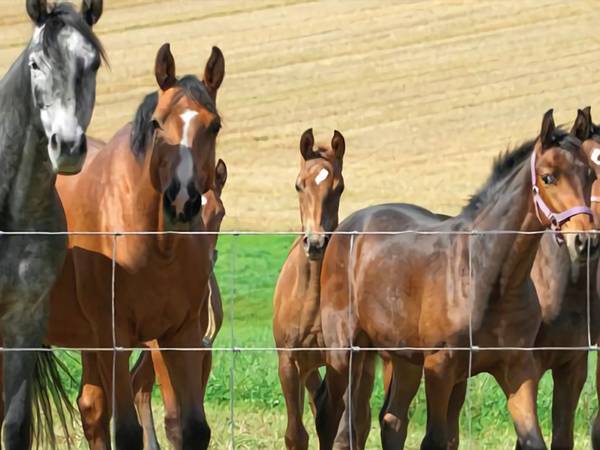

Horses are taking a leisurely walk in the horse ranch with hinge joint fence.

HJF-12: Hinge joint fence for horse ranch.

A head of brown horse with white long nose in the field with hinge joint fence.

HJF-13: Hinge joint fence for horse pasture.

Special Grade Hinge Joint Fence

Serves for where is less destructive but a very strong field fence is still required. Generally recommended for hunting enclosure.

  • Top and bottom wire
    • Diameter: 2.5 mm.
    • Tensile strength: ≥ 710 N/mm2.
  • Other wires
    • Diameter: 1.9 or 2.5 mm.
    • Tensile strength: 440–540 N/mm2.
A diagram picture of special grade hinge joint fence.

HJF-14: Special grade hinge joint fence diagram.

Table 4: Specification of Special Grade Hinge Joint Fence
Type Fence height (cm) Horizontal wire No. Vertical wires spacing (cm) Roll length (m)
200/14/30 200 14 15/20/30 optional 50-300
200/20/30 200 20 15/20/30 optional 50-300

Special grade hinge joint fence application

Tailed deer in the forest with hinge joint fence perimeter protection.

HJF-15: Hinge joint fence for tailed deer.

A herd of deer in the filed with hinge joint fence.

HJF-16: Hinge joint fence for deer hunting ground.

A little deer tried to put its head out of the hinge joint fence.

HJF-17: Hinge joint fence for deer feeding.

Testing of hinge joint fence

A close up picture show the wire diameter of hinge joint fence is 2.5 mm.

HJF-18: Quality control – stay wire diameter.

A close up picture show the finished hinge joint fence roll with wire diameter of 2.5 mm.

HJF-19: Quality control –finished roll wire.

A close up picture show the roll diameter of hinge joint fence is 26.5 mm.

HJF-20: Quality control –roll diameter.

A close up picture show the roll height of hinge joint fence is 155 mm.

HJF-21: Quality control –fence height.

Production and packing details

Galvanized steel wiremesh weavefinished productstockpackingloading

Galvanized steel wire as material of hinge joint fence.

HJF-22: Galvanized steel wire as material.

This is a close up picture of hinge joint fence manufacturing machine.

HJF-23: Efficient manufacturing machine.

This is a close up picture of finished hinge joint fence roll.

HJF-24: Finished hinge joint fence roll.

A close up picture of hinge joint fence stock.

HJF-25: Hinge joint fence stock.

A close up picture of packed hinge joint fence on pallet.

HJF-26: Packed hinge joint fence.

A close up picture of hinge joint fence shipment.

HJF-27: Hinge joint fence shipment.
