Chain Link Fencing Fittings – More than your Needs

Except for the chain link fencing, there are so many fittings and fasteners in the chain link fencing fittings.

Chain link fencing fittings can be attached onto different positions of your chain link fencing system to secure your chain link fencing system sturdy and durable. The galvanized or PVC coating surface ensures the long and durable service life for many years.

Several galvanized chain link fencing fittings on gray background.

CLFF-01: Galvanized chain link fencing fittings

Several black PVC coating chain link fencing fittings on gray background.

CLFF-02: PVC coating chain link fencing fittings

Barbed Wire Arms

Barbed wire arms are used on top of the chain link fencing to connect the top rail and install barbed wire strands. They are made of high quality galvanized pressed steels, which has excellent corrosion and rust resistance performance.

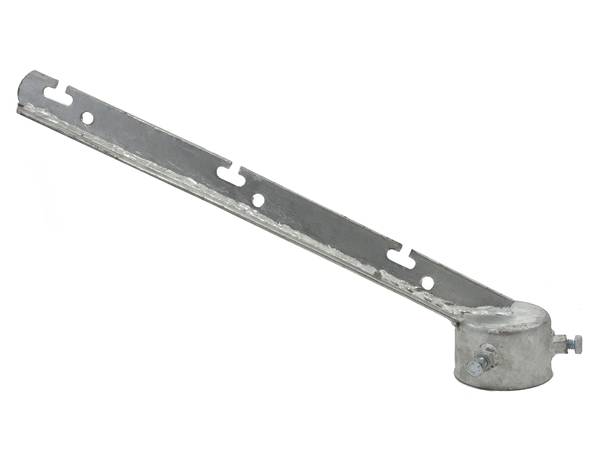

A standard post corner barb arm on white background.

CLFF-03: Post corner barb arms – standard

  • 2-1/2"
  • 3"
  • 4"

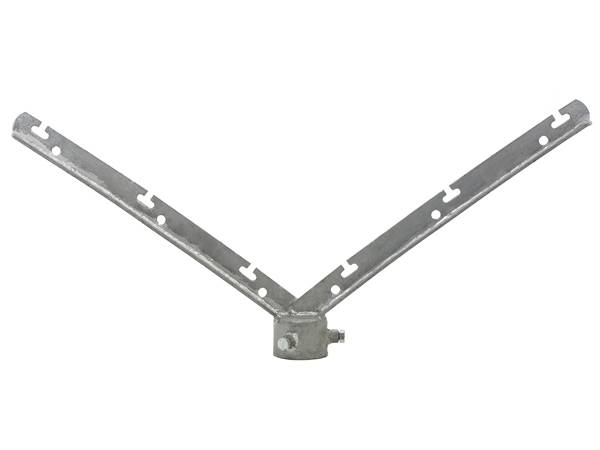

A V type post corner barb arm on white background.

CLFF-04: Post corner barb arms – V-Arm

  • 2-1/2"
  • 3"
  • 4"

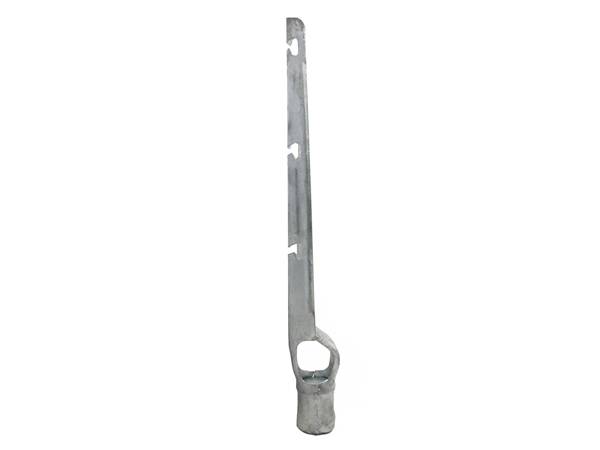

A vertical post corner barb arm on white background.

CLFF-05: Vertical straight barb wire arms

  • 2" × 1-5/8"
  • 1-5/8" × 1-5/8"
  • 2-1/2" × 1-5/8"

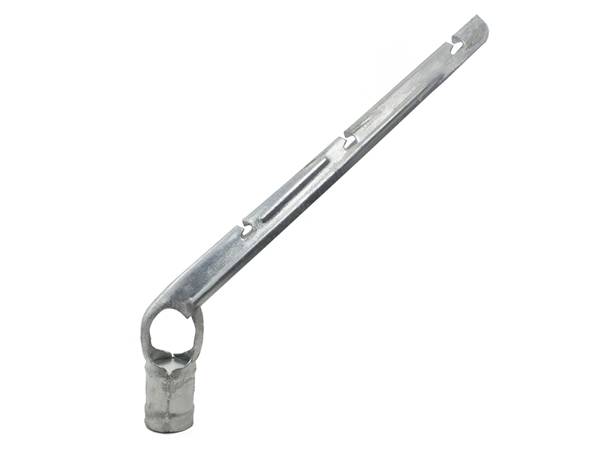

A 3 strands 45° barb wire arm on white background.

CLFF-06: 3 strands 45° barbed wire arms – 3 strands

  • 2-1/2"
  • 1-5/8" × 1-5/8"
  • 2" × 1-5/8"
  • 2-1/2" × 1-5/8"
  • 3" × 1-5/8"

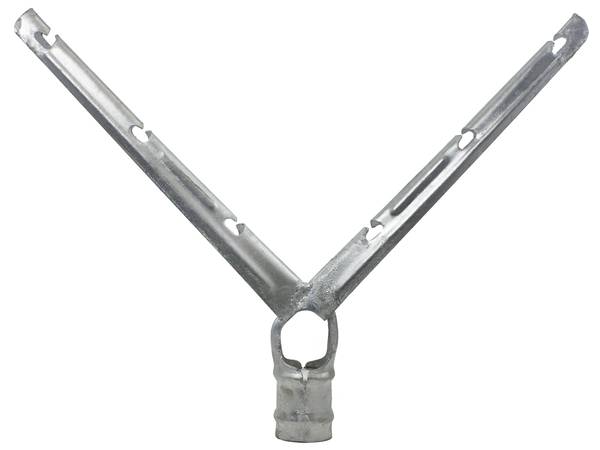

A 6 strands 45° barb wire arm on white background.

CLFF-07: 6 strands 45° barbed wire arms – 6 strands

  • 2" × 1-5/8"
  • 2-1/2" × 1-5/8"
  • 3" × 1-5/8"

Brace & Tension Bands

Brace bands and brace bands are used to attach chain link fencing fabric to line posts and terminal posts. Besides, they can fasten the chain link fabric onto gate frames.

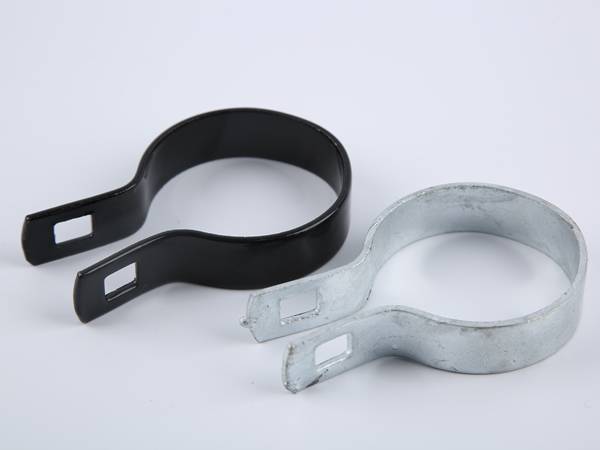

A piece of brace bands of chain link fencing on white background.

CLFF-08: Brace bands

  • 1-3/8"
  • 1-5/8"
  • 1-7/8"
  • 2-3/8"
  • 2-7/8"
  • 4"
  • 6-5/8"

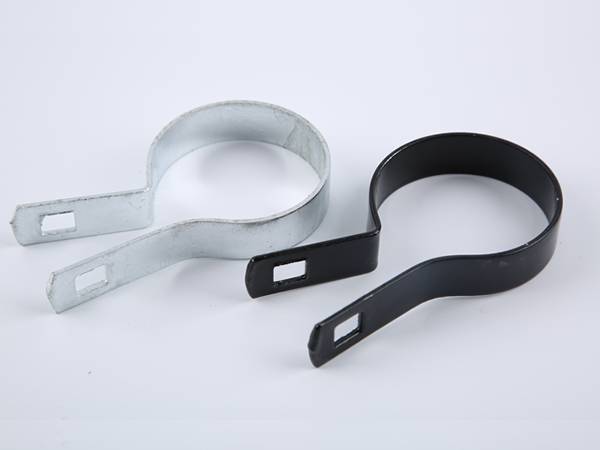

A piece of tension band of chain link fencing on white background.

CLFF-09: Tension bands

  • 1-3/8"
  • 1-5/8"
  • 1-7/8"
  • 2-3/8"
  • 4"
  • 6-5/8"

End rail & Line Rail Clamps

End rail clamps are widely used to install middle braces on chain link fences.

Line rail clamps, also called boulevard clamps, are widely used to attach two horizontal chain link fencing rails together. The fence posts are placed in the center of line rail clamp.

A piece of end rail clamp on white background.

CLFF-10: End rail clamp

  • 1-3/8" × 1-3/8" (5/16" × 2" carriage bolt)
  • 1-5/8" × 1-3/8" (5/16" × 2" carriage bolt)
  • 2" × 1-3/8" (5/16" × 2" carriage bolt)
  • 1-5/8" × 1-5/8" (5/16" × 2" carriage bolt)
  • 2" × 1-5/8" (3/8" × 2-1/2" carriage bolt)
  • 2-1/2" × 1-5/8" (3/8" × 2-1/2" carriage bolt)
  • 3" × 1-5/8" (3/8" × 2-1/2" carriage bolt)
A piece of end line clamp on white background.

CLFF-11: Line rail clamp

  • 1-3/8" × 1-3/8" (5/16" × 2" carriage bolt)
  • 1-5/8" × 1-5/8" (5/16" × 2" carriage bolt)
  • 1-5/8" × 1-5/8" (3/8" × 2-1/2" carriage bolt)
  • 2" × 1-5/8" (3/8" × 2-1/2" carriage bolt)
  • 2-1/2" × 1-5/8" (3/8" × 2-1/2" carriage bolt)
  • 3" × 1-5/8" (3/8" × 2-1/2" carriage bolt)
  • 4" × 1-5/8" (3/8" × 2-1/2" carriage bolt)

Post Caps

Post caps are installed at top of post to decorate and protect posts from rains, snows and other corrosive elements and extend fence system service life.

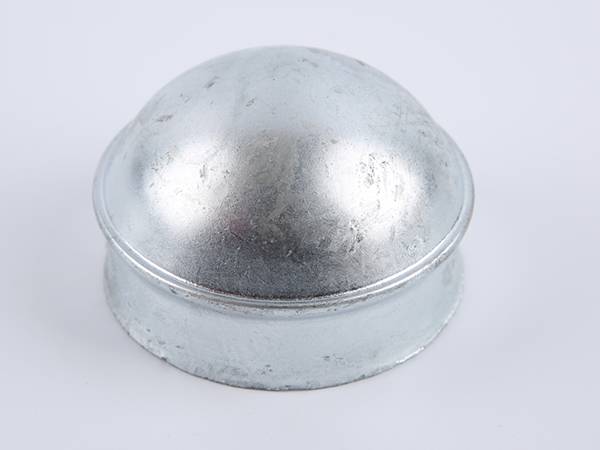

A piece of galvanized dome post caps on gray background.

CLFF-12: Galvanized dome post cap

  • 3-1/2"
  • 4"
  • 4-1/2"
  • 6-5/8"

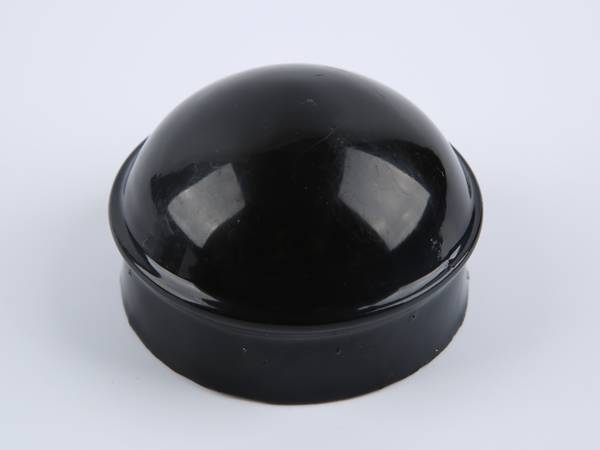

A piece of black PVC coating dome post caps on gray background.

CLFF-13: PVC coating dome post cap

  • 3-1/2"
  • 4"
  • 4-1/2"
  • 6-5/8"

Line post caps

Line post caps are used to cap the top of line posts and allow the top rail to slide through freely. The galvanized and PVC coating line post caps are all corrosion and rust resistance to increase the service life of chain link fencing caps.

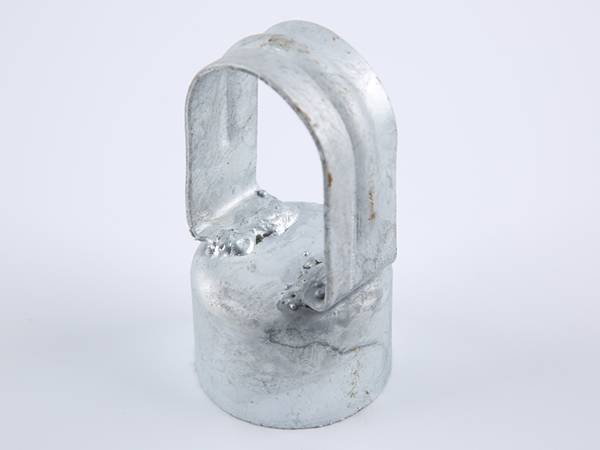

A piece of galvanized line post cap on gray background.

CLFF-14: Galvanized line post cap

  • 1-5/8" × 1-5/8"
  • 2" × 1-3/8"
  • 2" × 1-5/8"
  • 2-1/2" × 1-5/8"
  • 3" × 1-5/8"

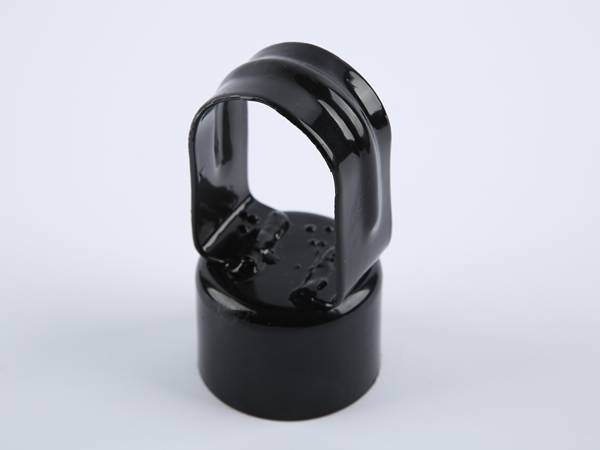

A piece of black color PVC coating line post cap on gray background.

CLFF-15: PVC coating line post cap

  • 1-5/8" × 1-5/8"
  • 2" × 1-3/8"
  • 2" × 1-5/8"
  • 2-1/2" × 1-5/8"
  • 3" × 1-5/8"

Top rail connectors

End rail caps, also called end rail cups, are widely used at the end of top rail and bottom rail. They can connect a brace bands to top rails, middle rails and bottom rails at each end posts, gate post and corner post.

A piece of rail end cap of chain link fencing on white background.

CLFF-16: End rail cap

  • 1-3/8"
  • 1-5/8"
A piece of rail end brace of chain link fencing on white background.

CLFF-17: Rail end brace

  • 1-5/8"
  • 2"

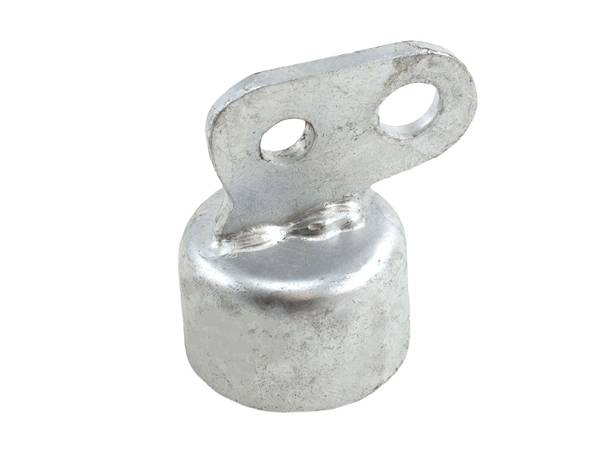

A piece of brace rail end of chain link fencing on white background.

CLFF-18: Brace rail end

  • 1-5/8"
  • 2"

Tension bars

Galvanized steel tension bars are important component of chain link fencing system, they are used to attach the chain link fencing onto the post. They can help stretch the chain link fence fabric evenly.

A line of chain link fencing tension bars on white background.

CLFF-19: Tension bars

  • 3/16" thick × 5/8" wide × 47" height – 48" height chain link fencing
  • 3/16" thick × 5/8" wide × 59" height – 60" height chain link fencing
  • 3/16" thick × 5/8" wide × 71" height – 72" height chain link fencing

Truss Rods

Truss rods and tighteners are used when braces and trusses are installed on chain link fences and gates. Truss Rods are threaded on one end to attach to the tightener, the other end can be welded or bent to form a hook to fit in a rail end combo fitting.

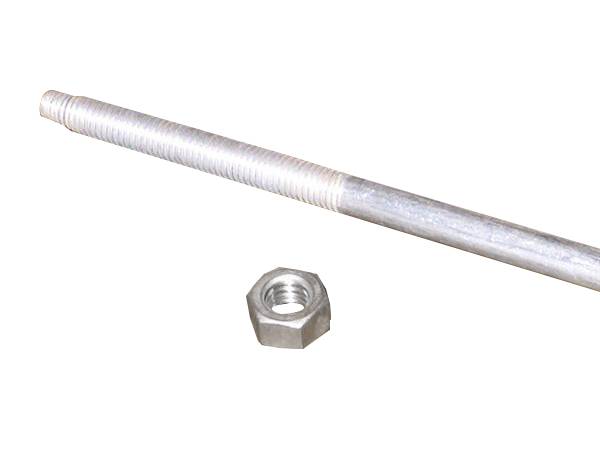

A truss rod and a nut on the white background.

CLFF-20: Truss rod

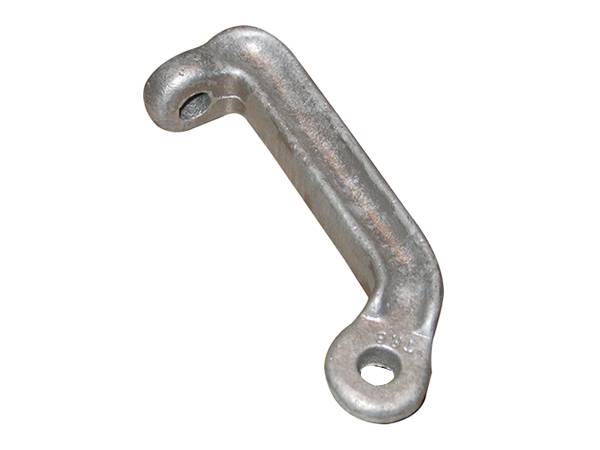

A truss rod tightener on the white background.

CLFF-21: Truss rod tightener
