AU & NZ Temporary Fence Gate – 360° full welding, no burrs

There is a Australia style temporary gate panel with hot dipped galvanized surface treatment.

ATG-01: Australia temporary fence gate

AU & NZ temporary fence gate often used to match with temporary fence which popular in Australia and New Zealand market. Designed with a width smaller than the opening to allow for gate hardware install. It provide a pedestrian and vehicle access way for your pre-defined area, or prevent unauthorized intrusions into your open-air material storage.

Our AU & NZ style temporary fence gate infilled with welded mesh are all implement the same strict testing and quality control process as our AU & NZ temporary fence panels, fence feet and clamps.

System components

Specifications

Panel Specification
Material Steel pipe, steel wire.
Pedestrian Gate Dimensions (H × W)
Gate width 3.28'–4.27'.
Gate height 6.9'.
Vehicle Gate Dimensions (H × W)
Gate width 4.9'.
Gate height 6.9'.
Other Params
Wire diameter 0.16", 0.24" optional.
Mesh opening 2" × 4", 2.36" × 6", 2.95" × 6" optional.
Frame O.D. 1.18" × 1.18" × 0.08", 1.58" × 1.58" × 0.08 optional.
Frame TH 0.08"–1".
Middle horizontal pipe O.D. 1" × 1" × 0.08".
Gate construction 360° full welded tubular frame
Fixed or adjustable Fixed
Surface treatment

Electric galvanized before powder coated.

Hot dipped galvanized after welding.

Color Dark green, yellow, red, blue, other RAL colors.
Gate wheel specification
Material Steel and non-pollution rubber.
Zinc thickness 42 microns.
Color Red, white, etc.
Surface treatment

Hot dipped galvanized.

Pre-galvanized.

AU & NZ Temporary Fence Gate Panels

  • Manual welding. Stick to manual welding for the purpose of the most appropriate strength.
  • 360° full welding. Make sure a firm welded structure. This can ensure that the temporary fencing is not damaged during the frequent moving process, and will not be corroded even in bad environment.
  • Flattened steel pipe. During welding, the steel pipe which will welded with infill meshes will be flattened. In this way, it can make the welding point more sturdy. Besides, it can save some spaces during transporting.
  • Smooth surface and no burrs. Eliminate every little bit of burr is the essential process. This is for prevent any scratch during set up and tear down.

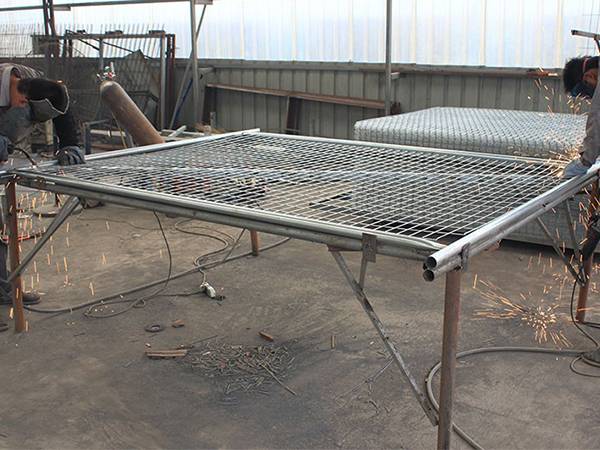

    A technique worker is welding the frame of Australia temporary fence.

    ATG-02: Gate frame is welded by hand

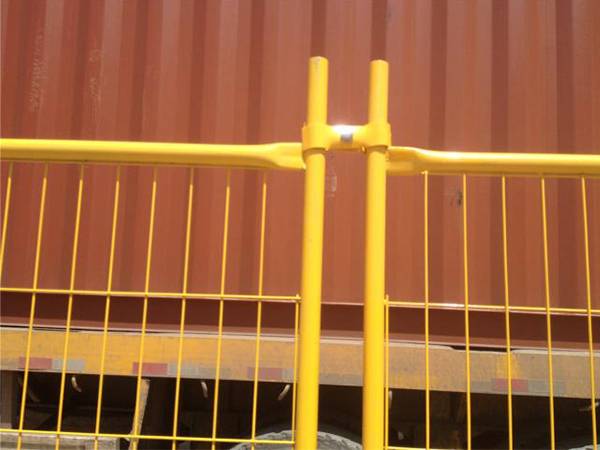

    A close up picture show the frame of Australia temporary fence with 360° full welded point.

    ATG-03: Full welded gate frame

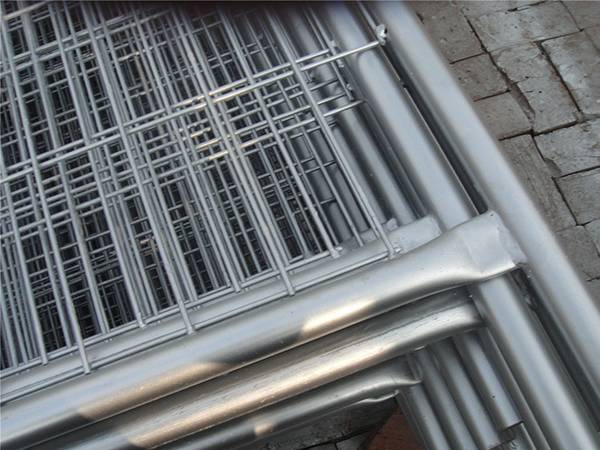

    A close up picture show the smooth surface of Australia temporary fence, there is no burrs.

    ATG-04: Smooth surface and no burrs

  • Strong corrosion surface treatment.
    • Electric galvanized before powder coated. This can not only guarantee the fastness of galvanized coating to prevent the corrosion of acid rain and ultraviolet radiation, but also make the temporary fencing have good aesthetic effect.
    • Hot dipped galvanized after welding. To ensure at least 70 µm thickness of zinc coating. Service life can reach more than ten years.
  • Various colors are available. We can provide variety of colours by powder coated surface treatment. Such as red, yellow, blue, gray, black, green, etc.

Gate wheel

Temporary fence gate wheels transforms a panel into a swing gate. Installed with wheels, the gates will close or open smoothly over even the roughest terrain.

  • There wheels are versatile suitable for the following two styles:

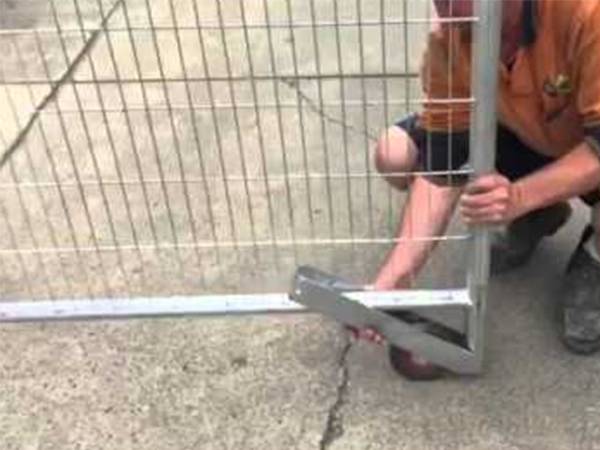

A worker is installing the wheel on the sliding gate of Australia temporary fence.

ATG-05: Sliding fence gate wheel

A close up picture of double swing gate of Australia temporary fence installed with rubber wheel.

ATG-06: Swing fence gate wheel

Application

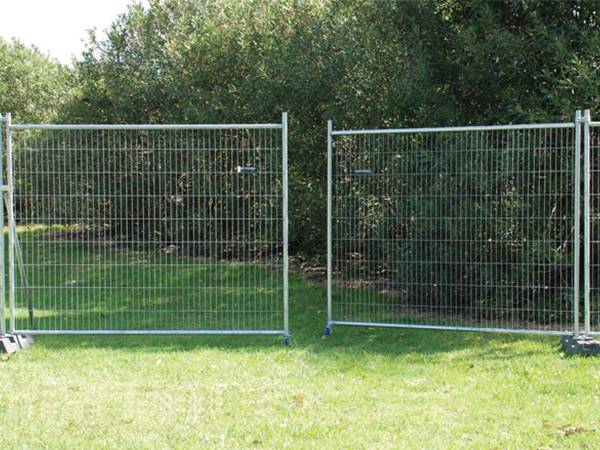

Australia temporary fence with a double swing gate stood ajar installed around the green land.

ATG-07: Double swing Australia temp gate

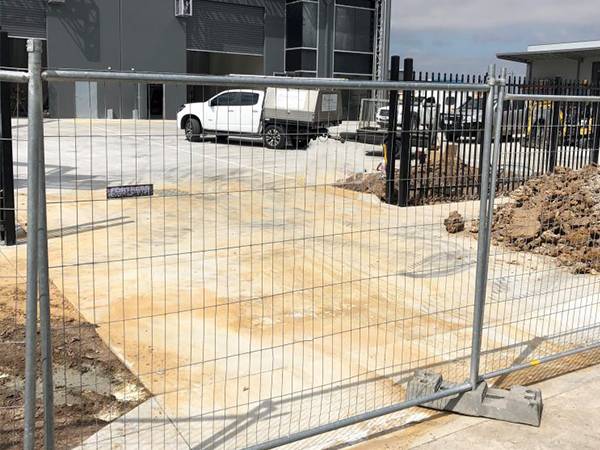

Australia temporary fence with gate is installed for worksite security.

ATG-08: Australia temp gate for worksite.

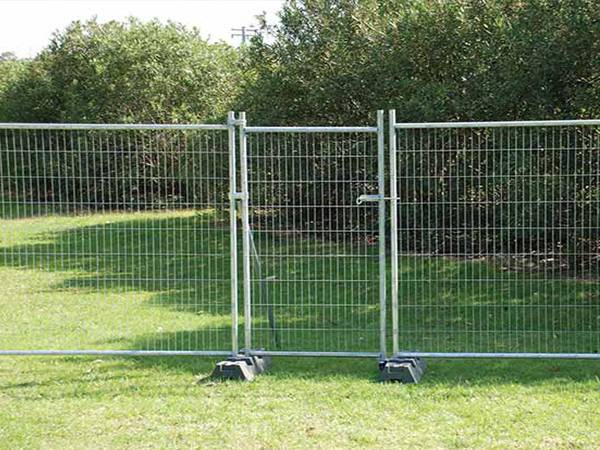

Australia temporary fence with a single swing gate installed around the green land.

ATG-09: Single swing Australia temp gate

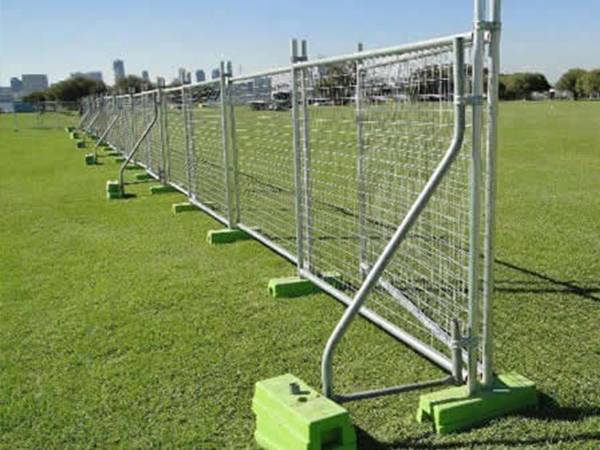

Australia temporary fence with gate is installed on the grassland.

ATG-10: Australia temp gate on the grassland
