CLTG-01: Temporary chain link gate
Chain link fence gate often used to match with temporary chain link fence, which designed with a width smaller than the opening to allow for gate hardware install. It provide a pedestrian and vehicle access way for your pre-defined area, or prevent unauthorized intrusions into your open-air material storage.
Our chain link fence gate infilled with cyclone mesh are all implement the same strict testing and quality control process as our temporary chain link fence panels, fence feet and clamps.
System components
Specifications
| Panel Specification | ||||||||
|---|---|---|---|---|---|---|---|---|
| Material | Steel pipe, chain link mesh | |||||||
| Double swing leaf gate dimensions | ||||||||
| Common dimensions (H × W) | 3.5' × 12' | 4' × 10' | 4' × 12' | 5' × 10' | 6' × 10' | 6' × 12' | ||
| Actual dimensions (H × W) | 3.5' × 11.5' | 4' × 9.5' | 4' × 11.5 | 5' × 9.5' | 5.79' × 9.58' | 6' × 11.5' | ||
| Fits Min Opening | 12" | 10" | 12" | 10" | 10" | 12" | ||
| Fits Max Opening | 144" | 120" | 144" | 120" | 120" | 144" | ||
| Single swing leaf gate dimensions | ||||||||
| Common dimensions (H × W) | 4' × 4' | 5' × 3.5' | 5' × 4' | 5' × 6' | 6' × 4' | 6' × 6' | ||
| Actual dimensions (H × W) | 4' × 3.66' | 5' × 3.16' | 5' × 3.66' | 5' × 6' | 6' × 3.66' | 6' × 6' | ||
| Fits Min Opening | 4" | 3.5" | 4" | 24" | 4" | 24" | ||
| Fits Max Opening | 48" | 42" | 48" | 72" | 48" | 72" | ||
| Wire diameter | 9 ga, 10.5 ga, 11 ga, 11.5 ga, 12 ga optional. | |||||||
| Mesh opening | 2", 2.25", 2.375", 2.4", 2.75" optional. | |||||||
| Frame O.D. | 1.25", 1.315", 1.5", 1.6", 1.66" optional. | |||||||
| Frame wall thickness | 0.06" | |||||||
| Gate post (O.D. × H) | 2.36" × 2.36"' × 0.06" | |||||||
| Post height | 9.2' | |||||||
| Gate construction | 360° full welded tubular frame and bent frame. | |||||||
| Fixed or adjustable | Fixed | |||||||
| Surface treatment |
Hot dipped galvanized. Pre-galvanized. |
|||||||
| Attached way |
Mesh wrapped around the flat bar then connect with clamps. Galvanized wire wrapped with steel frame in a rather tension way. |
|||||||
| Gate wheel specification | |
|---|---|
| Material | Steel and non-pollution rubber. |
| Zinc thickness | 42 microns. |
| Color | Red, white, etc. |
| Surface treatment |
Hot dipped galvanized. Pre-galvanized. |
Temporary Chain Link Fence Gate Panels
- Two styles of frame optional.
- 360° full welded tubular frame. 360° full manual welding to make sure a firm gate structure. This will creating 4 square corners there.
- Bent frame. Constructed from a single piece of steel tube with diameter of 1.375", which creating 4 bent corners.

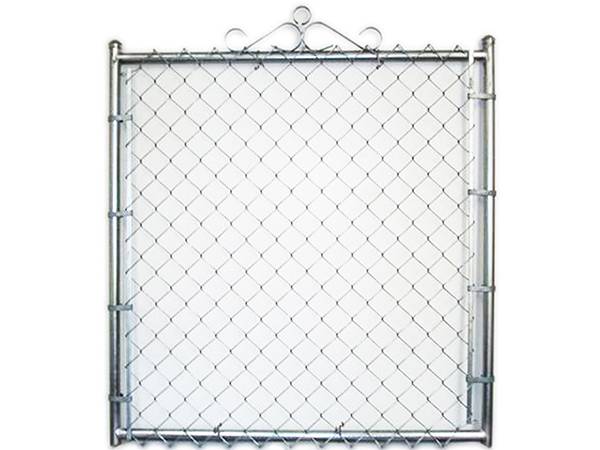

CLTG-02: Temp chain link gate with welded frame

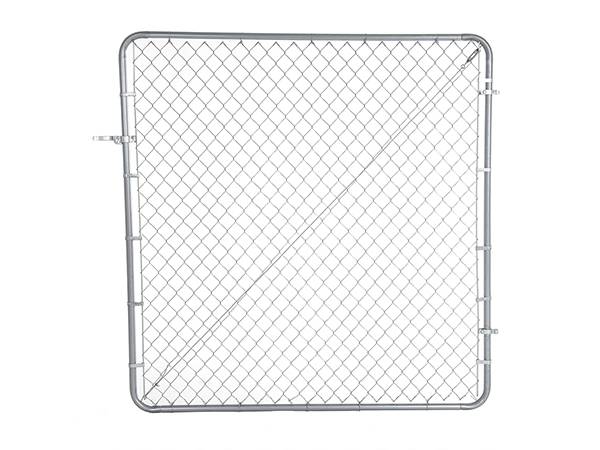

CLTG-03: Temp chain link gate with bent frame
- Hand craft techniques manufacture. Gate panels are filled with galvanized chain link mesh and wrapped around the frame tube with tension bars and tension bands by hand in a rather tension way.
- Another option sturdy attached way. Available flat bar then use clamps to connect the infill panel and the frame.
- There are three styles for your choice.

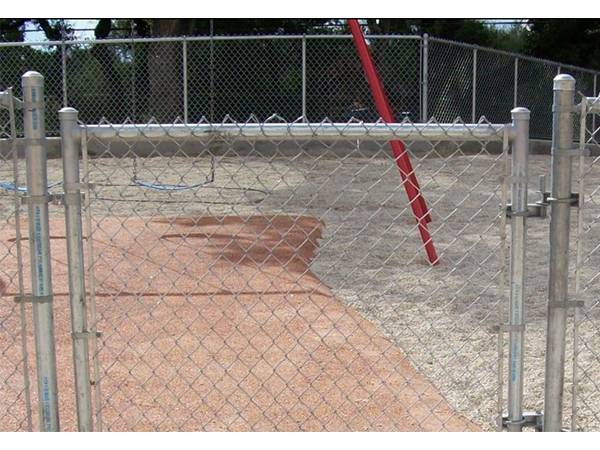

CLTG-04: Single swing leaf temp chain link gate

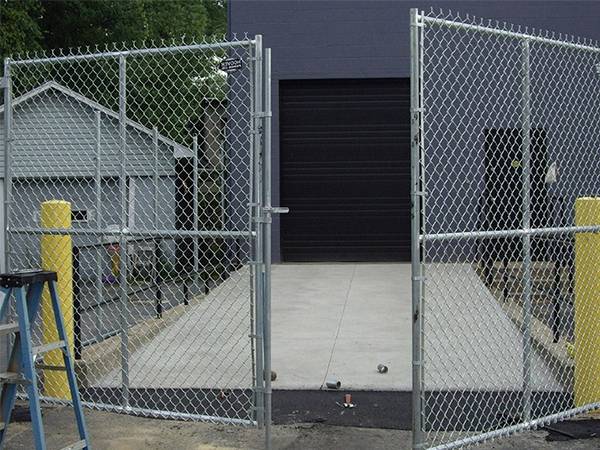

CLTG-05: Double swing leaf temp chain link gate
- Strong corrosion surface treatment.
- Hot dipped galvanized. To ensure at least 42 microns thickness of zinc coating. Service life can reach more than ten years.
- Pre-galvanized. 28 microns or at least 14 microns thickness of zinc coating is anti- corrosion can satisfy the normal applications
Gate wheel
Temporary fence gate wheels transforms a panel into a swing gate. Installed with wheels, the gates will close or open smoothly over even the roughest terrain.
- There wheels are versatile suitable for the following two styles:
CLTG-06: Swing fence gate wheel

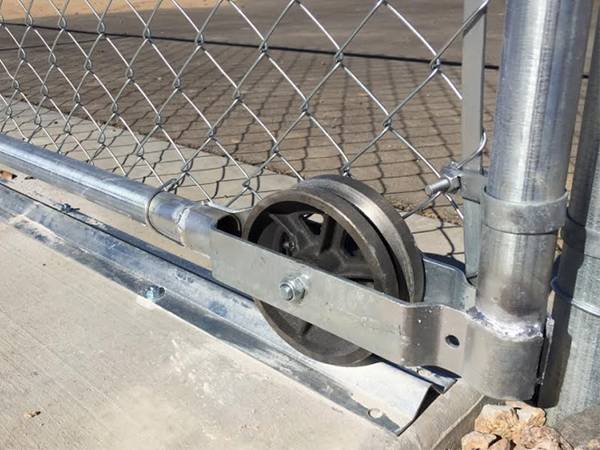

CLTG-07: Sliding fence gate wheel
