Customized CA Temporary Fencing – Limits Risks, Complete fencing system

As a professional manufacture of CA temporary fencing, we own experienced technicians and first-class product line. because of the dimensions of 6' H × 8' W. Use high quality mild steel wire and tube as raw material, after welding with high-frequency welding technology. Plus strong corrosion treatment of electric galvanized before powder coated or hot dipped galvanized after welding. Service life can be up to 10 years.

Besides, Customized CA temporary fencing with wire diameter of 6.0 mm, frame outside diameter of 30 × 30 mm, superadd the middle horizontal pipe outside diameter of 25 × 25 mm, the finished Canada welded temporary fencing is strong enough and durable for any site needing security or privacy.

System components

Specifications

Panel Specification
Available Dimensions
(H × W)

6' × 9.5' (equal to 1.8 × 2.9 m)

8' × 9.5' (equal to 2.4 × 2.9 m)

8.2' × 8' (equal to 2.5 × 2.4 m)

8.2' × 9.5' (equal to 2.6 × 2.4 m)

6.2' × 8' (equal to 1.9 × 2.4 m), etc.

Wire diameter 4.0, 6.0 mm optional.
Mesh opening 50 × 100, 50 × 150, 75 × 150 mm optional.
Frame O.D. × TH 30 × 30 × 2, 40 × 40 × 2 mm optional.
Frame TH 2.0–2.5 mm.
Middle horizontal pipe O.D. 25 × 25 × 2 mm.
Surface treatment

Electric galvanized before powder coated.

Hot dipped galvanized after welding.

Color Dark green, yellow, red, blue, other RAL colors.
Fence feet Specification
Material Steel plate, steel solid rod, steel pipe.
Dimensions
(H × W × TH)
600 × 110 × 8, 900 × 80 × 7 mm optional.
Hole size O.D. 19 mm.
Interior round steel rod/pipe 30 mm O.D. × 150 mm H.
Exterior square steel rod/pipe 30 × 30 × 150 mm.
Rod space 30 mm.
Surface treatment Electric galvanized before powder coated.
Top Clips Specification
Material Steel plate, steel solid rod, steel pipe.
Coupler top plate/pipe 110 × 40 × 8 mm.
Left round steel rod/pipe 30 mm O.D. × 150 mm H.
Right square steel rod/pipe 30 × 30 × 150 mm H.
Surface treatment Electric galvanized before powder coated.
Clamp Specification
Clamp center distance 80, 90, 100 mm optional.
Applied post O.D. 25, 28, 32, 38, 40, 42 mm optional.
Clamp TH 4 mm.
Bolt Length available 100/60/40 mm with a 10 mm and 8 mm outer diameter.
Nut 15.9 mm, 17 mm optional.
Surface Treatment Hot dipped galvanized.
Weight 0.42 kg/set.
Accessory List 2 pieces clamps with 1 bolt and 1 nut.

6' × 9.5' Canada Temporary Fencing Panels

  • Manual welding. Stick to manual welding for the purpose of the most appropriate strength.
  • 360° full welding. Make sure a firm welded structure. This can ensure that the temporary fencing is not damaged during the frequent moving process, and will not be corroded even in bad environment.
  • Smooth surface and no burrs. Eliminate every little bit of burr is the essential process. This is for prevent any scratch during set up and tear down.

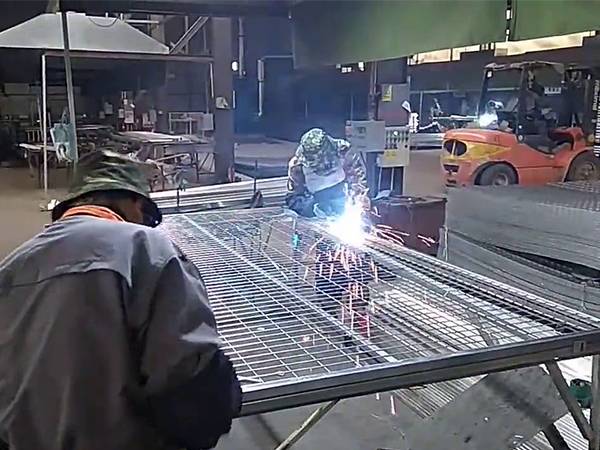

    Workers are welding the Canada temporary fence.

    CNF-04: Manual welding

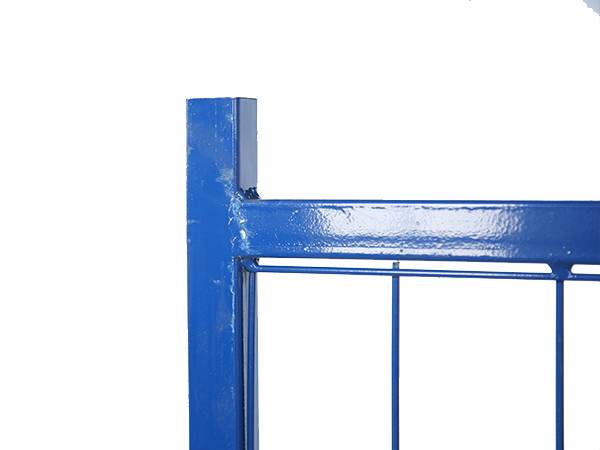

    A close up picture show the frame of Canada temporary fence with 360° full welded point.

    CNF-05: 360° full welding point

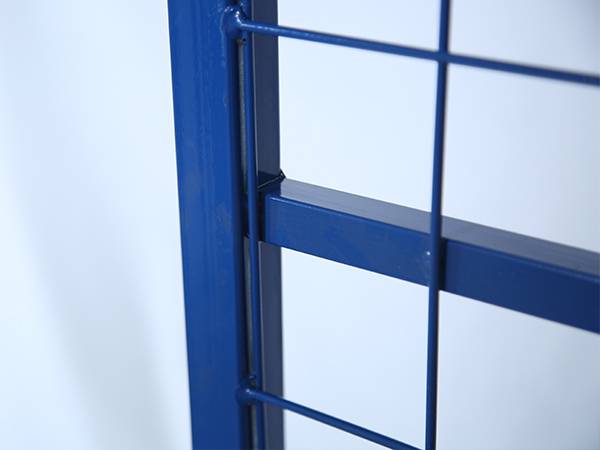

    A close up picture show the smooth surface of Canada temporary fence, there is no burrs.

    CNF-06: Smooth surface and no burrs

  • Strong corrosion surface treatment.
    • Electric galvanized before powder coated. This can not only guarantee the fastness of galvanized coating to prevent the corrosion of acid rain and ultraviolet radiation, but also make the temporary fencing have good aesthetic effect.
    • Hot dipped galvanized after welding. To ensure at least 70 µm thickness of zinc coating. Service life can reach more than ten years.

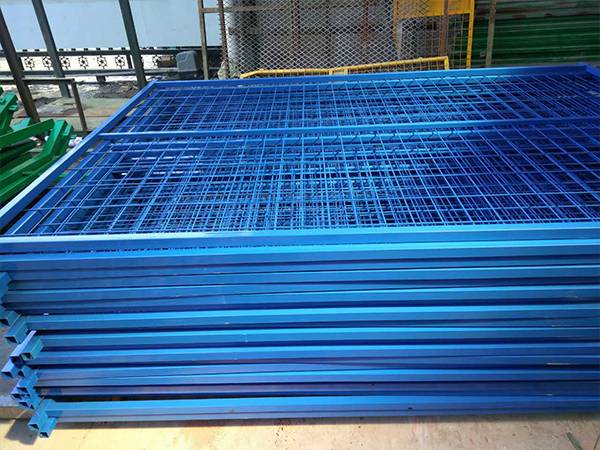

    There are many Canada temporary fence with powder coated surface treatment.

    CNF-07: Powder coated CA temp fence panel

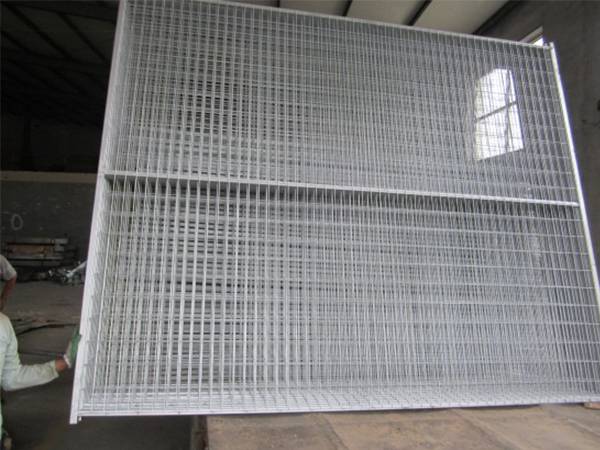

    There are many Canada temporary fence with hot dipped galvanized surface treatment.

    CNF-08: Hot dipped galvanized CA temp fence panel

  • Various colors are available. We can provide variety of colours by powder coated surface treatment. Such as red, yellow, blue, gray, black, green, etc.

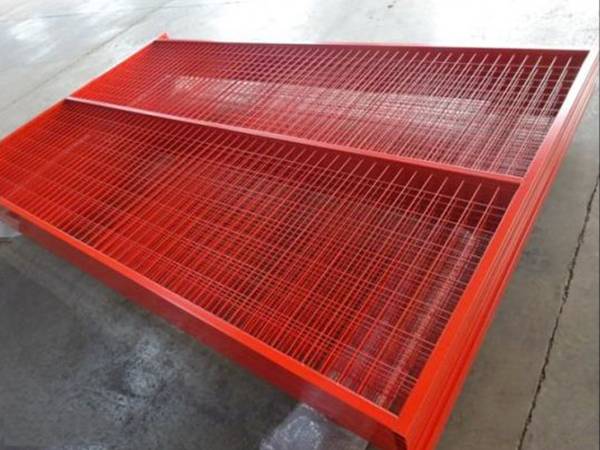

    Several red color Canadian temporary fencing panels in the warehouse.

    CNF-09: Red.

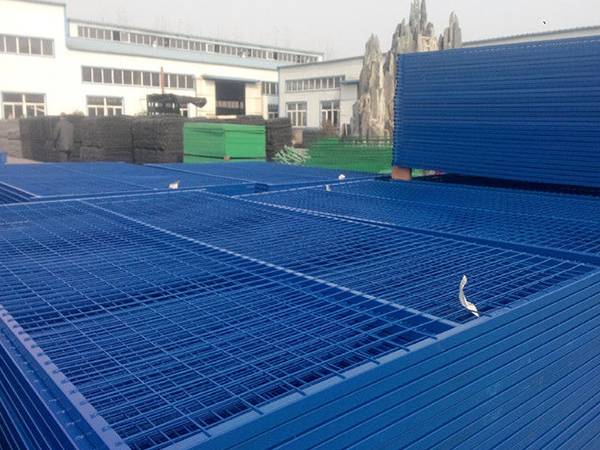

    Several blue color Canadian temporary fencing panels in the warehouse.

    CNF-10: Blue.

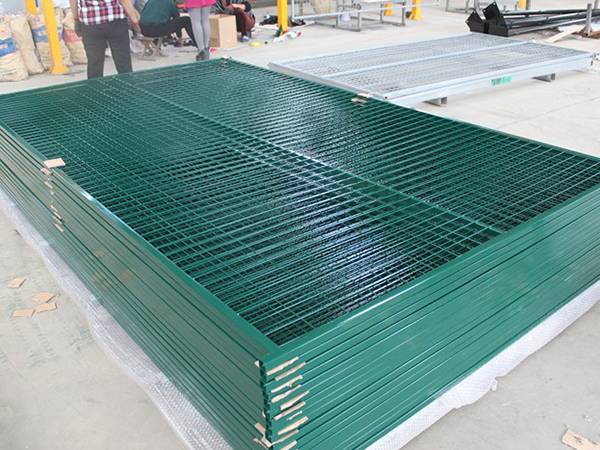

    Several dark green color Canadian temporary fencing panels in the warehouse.

    CNF-11: Dark green.

    Several orange color Canadian temporary fencing panels in the warehouse.

    CNF-12: Orange.

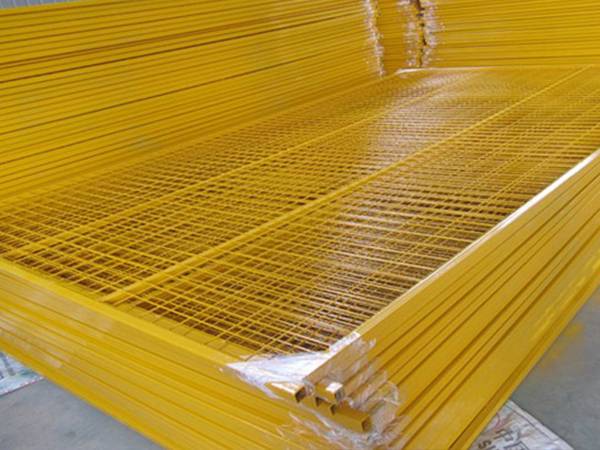

    Several yellow color Canadian temporary fencing panels in the warehouse.

    CNF-13: Yellow.

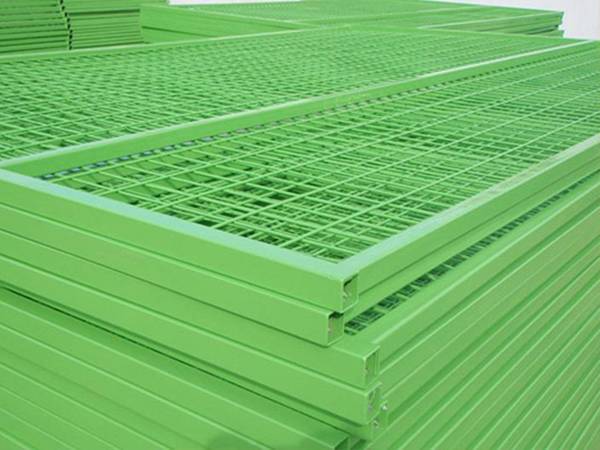

    Several grass green color Canadian temporary fencing panels in the warehouse.

    CNF-14: Grass green.

Production process

Galvanized steel wire – Straighten & cut short – Welded – Parkerising – PVC coated/sprayed – Packing – Shipment

Low carbon steel wire – Straighten & cut short – Welded – Hot-dipped galvanized – Packing – Shipment

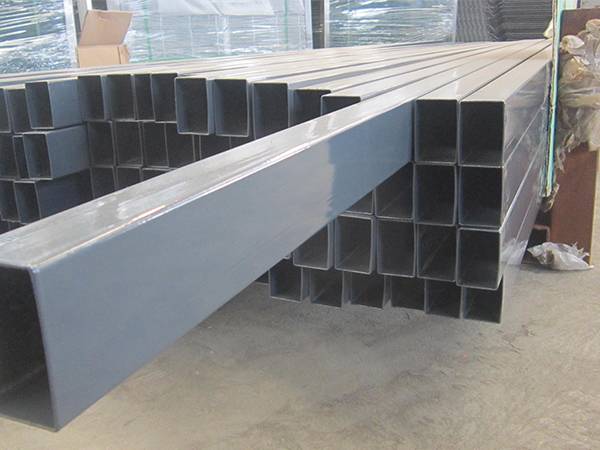

There are many steel pipes for Canada temporary fence as frame material

CNF-15: Steel pipe for Canada temporary fence

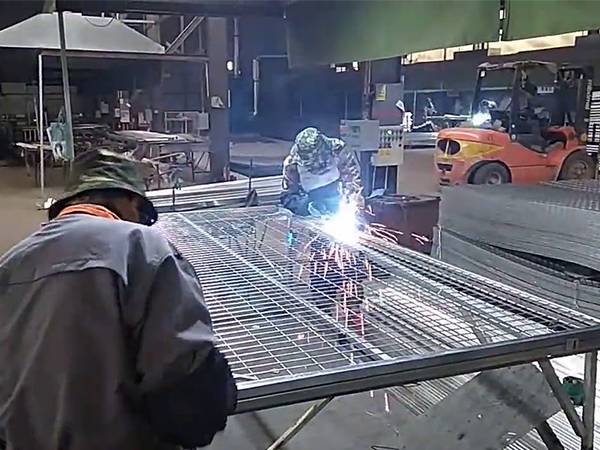

Workers are welding the Canada temporary fence.

CNF-16: Manual welded frame of CA temp fence

This is a picture about the powder coating process of Canada temporary fence.

CNF-17: Electrostatic spraying plant

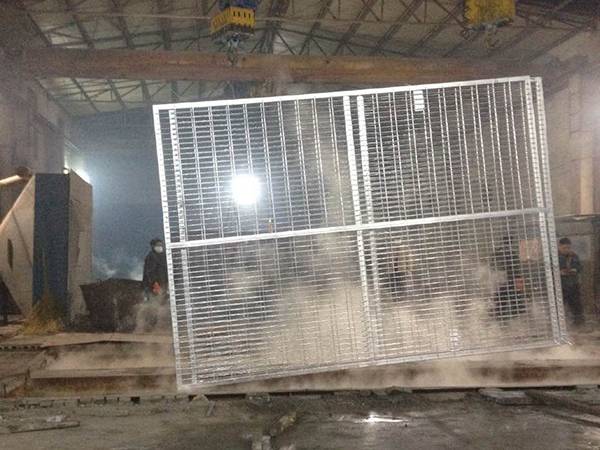

This is a picture about the hot dipped galvanizing process of Canada temporary fence.

CNF-18: Hot-dipped galvanized plant

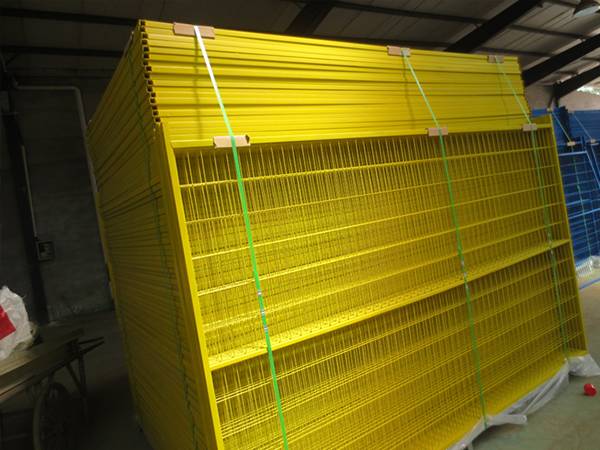

There are a lot of packed Canada temporary fence with yellow color.

CNF-19: Packed Canada temporary fence

The container was loaded into the packed Canada temporary fence with yellow color.

CNF-20: Canada temporary fence shipment

Platy Steel Base

  • No need to dig holes or laying foundations. Only need to place the base on a flat surface. If necessary, there are two 19 mm diameter pin holes to peg the footing on the ground when the install completes.
  • Adapt cement or asphalt areas. With good regional adaptability, the ground is not required to be absolutely flat, neither cement or asphalt areas.
  • Stable enough. Technical staff will give a reliable advice of platy fencing feet size according to the panel dimensions.
  • Three different styles are available. We provide flowing three types of base connector clip for your standard and special demand.

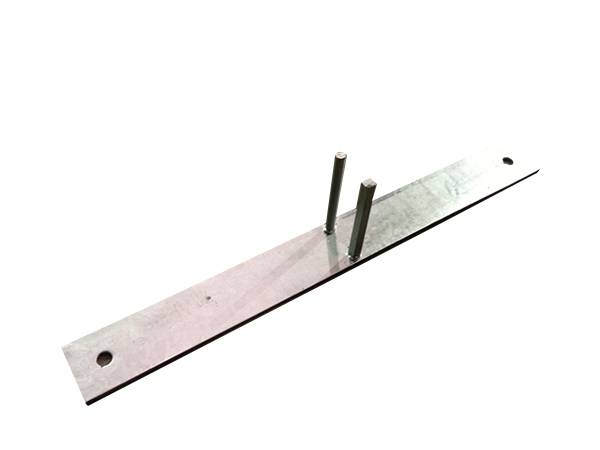

This is a fence feet with round and square steel rod for Canada temporary fence.

CNF-21: Round and square steel rod fence feet

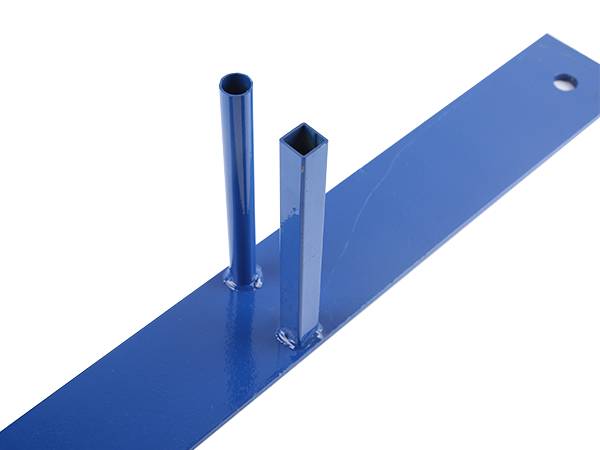

This is a fence feet with round and square steel pipe for Canada temporary fence.

CNF-22: Round and square steel pipe fence feet

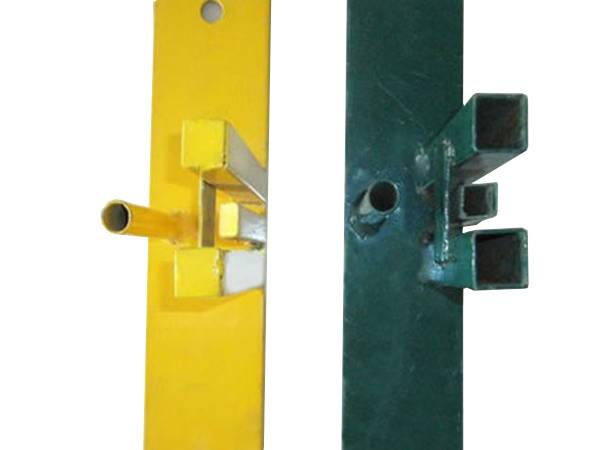

There are two set of fence feet with added fastening for Canada temporary fence.

CNF-23: CA temp fence with added fastening pipe

Top Clips

A special fencing coupler which popular in Canada and North America, it gives a secure clamp to the CA temporary fencing. In addition, it provide a flexible isolation angle for requirement of rapid re-configuration of the construction area.

  • Two different styles are available. We provide following two types of top clips for your standard and special demand. Warm Tip: the pipe leg can be replaced by a round rod by your request.

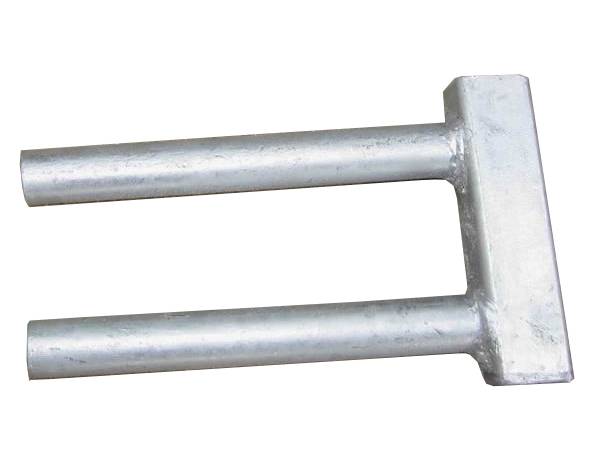

    This is a top clip with round steel pipe for Canada temporary fence.

    CNF-24: Top clip with round steel pipe

    This is a top clip with round and square steel pipe for Canada temporary fence.

    CNF-25: Top clip with round & square pipe

  • Easy installation. Just need to insert its legs to the fences.

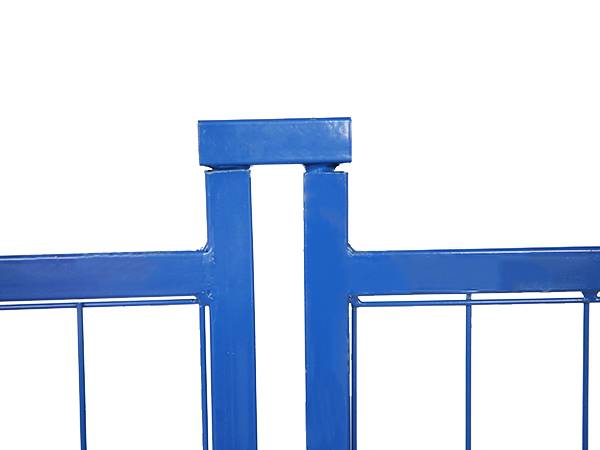

    A close up picture of assembled top clip for Canada temporary fence.

    CNF-26: Assembled top clip of Canada temporary fence
