Flat-Top Classic Steel Fence – Corrosion Resistance & Environmental

Flat-top classic steel tubular fence, with a structure of vertical picket terminate at the rails. It is a type of ornamental fencing which is low maintenance, no need for frequent repainting as traditional wrought iron fencing but remain visually attractive and strong enough for secure your property. Compared with aluminium fence, steel fence is longevity without sag under weight or stress. Classify by the number of horizontal rails, there are 2-rail steel fence, 3-rail steel fence, 4-rail flat-top steel fence optional.

As a experienced manufacture, we always adhere to 360° manual welding rather than by automated tools to prevent any leakage of welding and ensure the most appropriate strength. Thus, we are competent for standard and special styles and sizes of steel fence for courtyard, poolside, roadside, airport, station, factory, school, estates, garden & lawn and other sites need security protection.

Black ornamental steel tubular fence with flat top.

FSF-01: Flat-top steel fence

System components

Specifications

Panel specification
Dimensions (H × W) 6' × 8', 10' × 8', 7' × 8', 8' × 8'
Residential use dimensions (H × W) 3' × 8', 3.5' × 8', 4' × 8', 4.5' × 8', 5' × 8' optional.
Material Q235 steel tube.
Horizontal rail O.D. 1.26" × 1.26", 1.58" × 1.58", 1.78" × 1.78", 2" × 2", optional.
Horizontal rail wall thickness 0.05"–0.08".
Vertical rail O.D. 0.63" × 0.63", 0.75" × 0.75", 1" × 1".
Vertical rail wall thickness 0.03"–0.48".
Gap 4.15", 4.33", 4.53", 4.57", 4.9", 5.12" optional.
Yield strength 350Mpa.
Surface treatment

Full hot dipped galvanized.

Pre-galvanized and powder coated.

Galvanizing thickness G90, G60.
Color Silver, gray, black, etc.
Fence post Specification
Material Steel tube.
Dimensions (O.D. × TH)

2.36" × 2.36" × 0.08"

2.56" × 2.56" × 0.08"

3.15" × 3.15" × 0.08"

4" × 4" × 0.12" optional.

Post height 8.9', 10' optional.
Surface treatment

Full hot dipped galvanized.

Pre-galvanized and powder coated.

Galvanizing thickness G90, G60.
Color Silver, gray, black, etc.
Accessory List 1pcs post cap, 4 set brackets, 12 pcs self drilling screw.

Flat-top steel fence panel

  • 360° full welded by hand. Horizontal rails with equality punched holes and upright pailings are 360° full welded with strong welding point but small welding spot to make sure there is no split weld even long time service.
  • Lock uninvitors and intruders out. Upright pailings picket with crimped spear top is deterrent for any unauthorized entry. Beside, the narrow horizontal rail space makes there is no foot holds to climb over.
  • Crimped spear-top and flat-top optional. There are spear-top and curved spear-top the two type of steel fence for your high level security requirement. of course, you can choose flat-top steel fence to minimize unnecessary injuries.
  • Various styles optional. AS a defensive fencing which combined with aesthetics, there are 2-rail steel fence, 3-rail steel fence and 4-rail steel fence for your different esthetic requirements

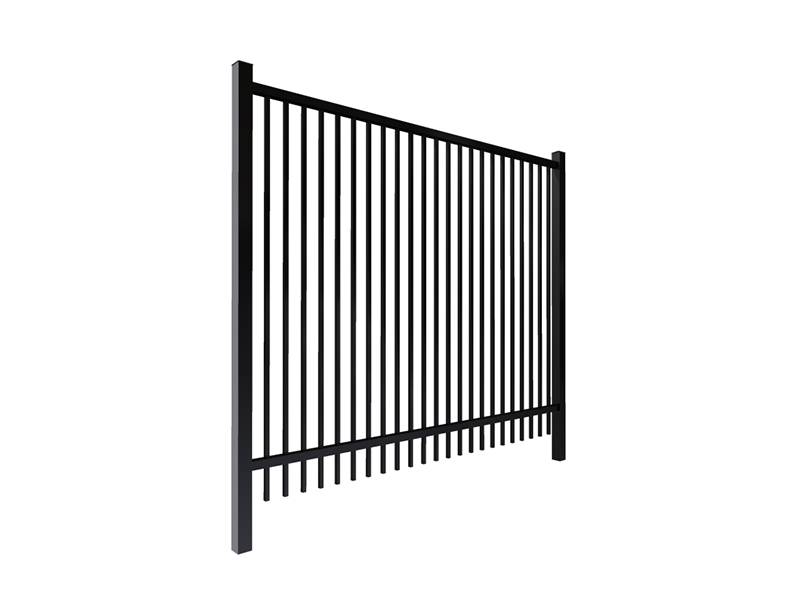

    A drawing picture of 2-rail ornamental steel tubular fence with flat top.

    FSF-02: 2-rail flat top steel fence

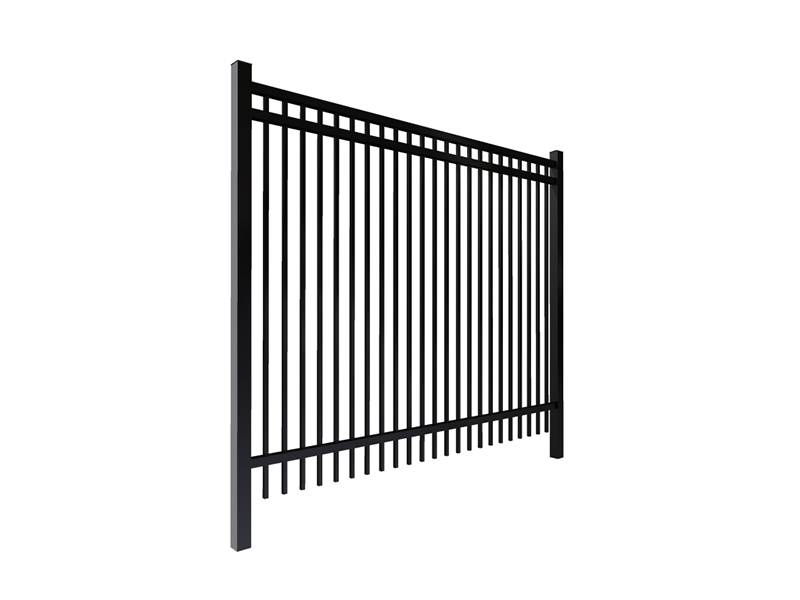

    A drawing picture of 3-rail ornamental steel tubular fence with flat top.

    FSF-03: 3-rail flat top steel fence

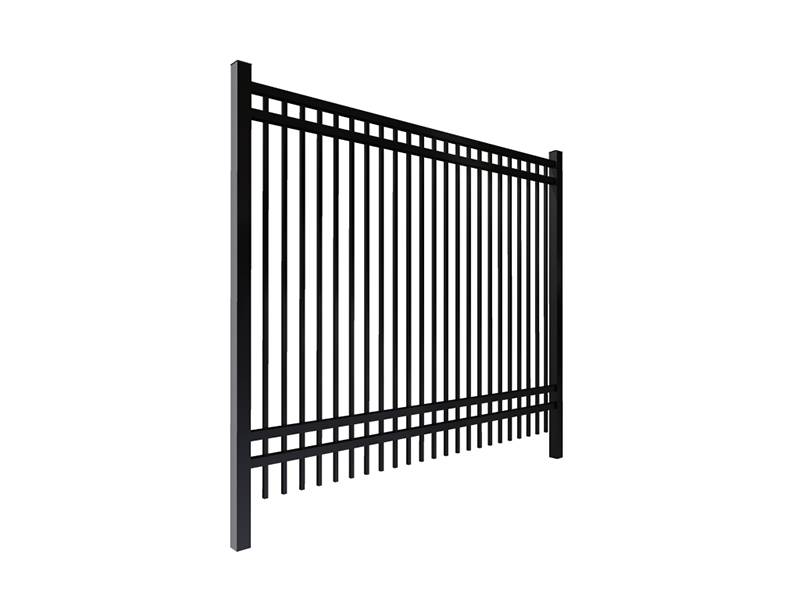

    A drawing picture of 4-rail ornamental steel tubular fence with flat top.

    FSF-04: 4-rail flat top steel fence

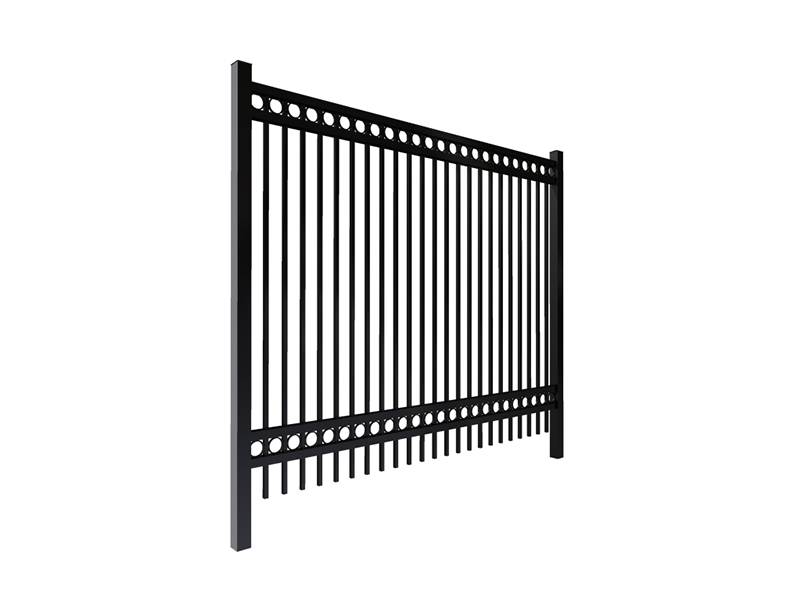

    A drawing picture of 4-rail flat top ornamental steel tubular fence with decorative rings.

    FSF-05: Flat top steel fence with decorative rings

  • Strong corrosion surface treatment.
    • Full hot dipped galvanized. G90 or G60 galvanized coating on both inside and outside of the steel tube. Thus, the whole steel tube surface is protected by anticorrosive coating. Service life can reach more than 25 years.
    • Pre-galvanized and powder coating. Corrosion resistance galvanized coating plus colorful powder coating make the steel fencing both durable and attractive.
    Hot dipped galvanized ornamental steel tubular fence.

    FSF-06: Hot dipped galvanized steel fence

    Pre-galvanized and powder coated ornamental steel tubular fence.

    FSF-07: Pre-galvanized & powder coated steel fence

Steel Fence Panel Production Process

Specified Grade Of Steel TubeStraighten & CuttingpunchingWeldingPre-GalvanizingParkerizingPowder/PVC coatingPacking

Specified Grade Of Steel TubeStraighten & CuttingpunchingWeldinghot dipped galvanizingPowder/PVC coatingPacking

A summary picture about the manufacturing process of ornamental steel tubular fence.

FSF-08: Steel fence production process

Fence post

Important accessory play a role of supporting and tightening. The tubular posts are driven into the ground by hand or pneumatic post pounder. The most commonly used specification including 2.56" × 2.56" × 0.08", 2.36" × 2.36" × 0.08", 3.15" × 3.15" × 0.08", 4" × 4" × 0.12" optional. For residential use, 2" × 2" × 0.05" is a regular size.

1 set of steel fence post include 1pcs post cap, 4 set brackets, 12 pcs self drilling screw.

A close up picture of fencing post for ornamental steel tubular fence.

FSF-09: Post used for steel fence

There is a black cap for ornamental steel tubular fence post.

FSF-10: Post cap for steel fence post

There is a black bracket and four screws for ornamental steel tubular fence.

FSF-11: Mounting brackets & screws

Production process

Tube CuttingPunching HolesHot-Dipped GalvanizedSandblastingPowder/PVC CoatingAssembly

Packing and delivery details

Galvanized steel fencing panels are wrapped with bubble then delivered in steel pallets, different loading quantity according to different goods and container sizes.

Packed in Steel Pallet
1 × 40' HC for 10' × 8' 290 sets (1 panel + 1 post + 1pcs post cap + 4 set brackets + 12 pcs self drilling screw).
1 × 40' HC for 6' × 8' 408 sets (1 panel + 1 post + 1pcs post cap + 4 set brackets + 12 pcs self drilling screw).
