Galvanized & Color Coated Chain Link Fencing Fabric

A line of chain link fencing is surrounding the grassland.

CLF-01: Chain link fencing is easy and convenient for installation and use.

Chain link fencing system is one of most widely accepted fence type in no matter residential or commercial applications. The flexible and soft structure, corrosion and rust resistance surface, architectural colors and easy installation features, all these make the chain link fencing more and more popular all over the world.

Chain link fencing system is main including chain link fencing fabric, framework, gates, fittings and optional privy slats. You can purchase all lists from us. View Product list for one-stop purchase.

Chain link fencing fabric, also called cyclone fencing, is a flexible and soft fencing structure. It is the main parts of chain link system.

Material

The chain link fencing fabric can be divided into two categories: galvanized chain link fencing fabric and color coated chain link fencing fabric.

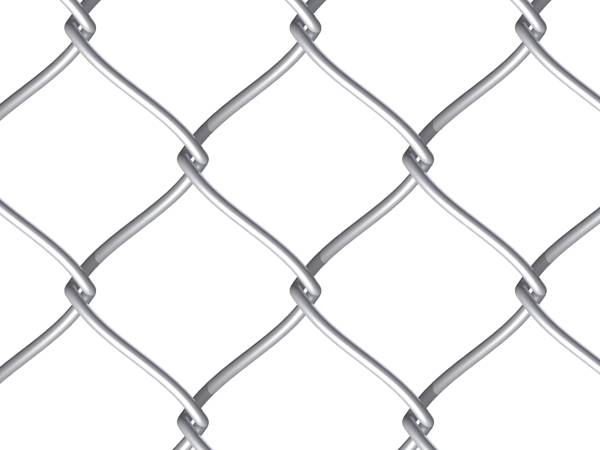

A piece of galvanized chain link fencing fabric on white background.

CLF-02: Galvanized chain link fencing fabric

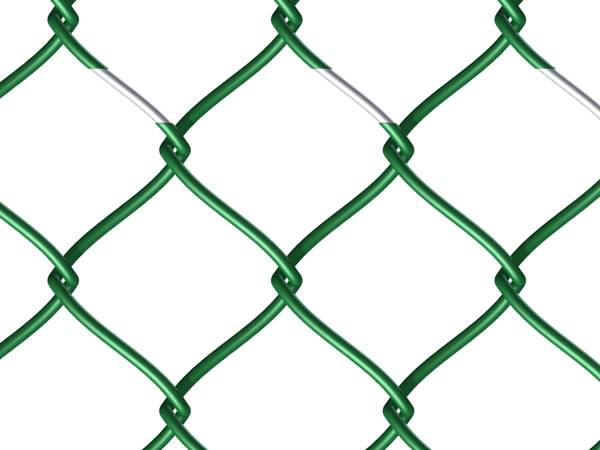

A piece of color coated chain link fencing fabric on white background.

CLF-03: PVC coated chain link fencing fabric

Edge

The chain link fencing are available in two edges:

  • Knuckle edge. Common and widely seen type. Simple structure for regular and general use.
  • Twisted edge. Relatively stronger edge type to prevent intruders from climbing into the forbidden areas.

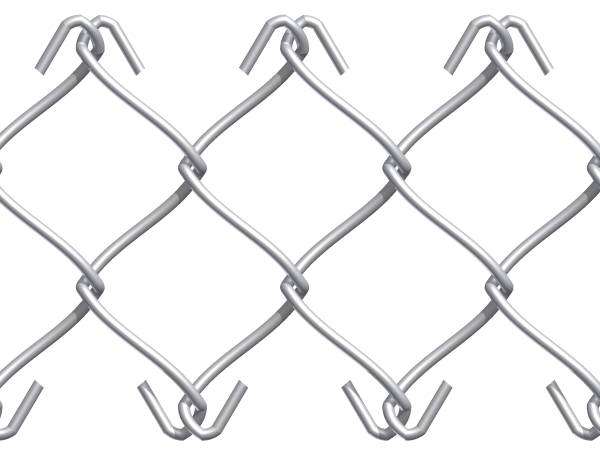

A piece of cyclone fencing with knuckle edge on white background.

CLF-04: Knuckle edge

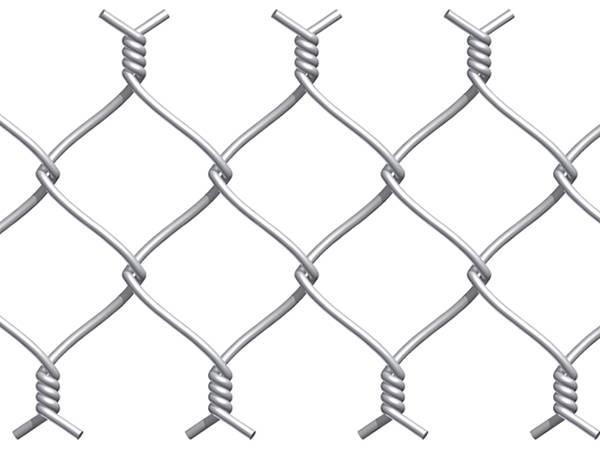

A piece of cyclone fencing with twisted edge on white background.

CLF-05: Twisted edge

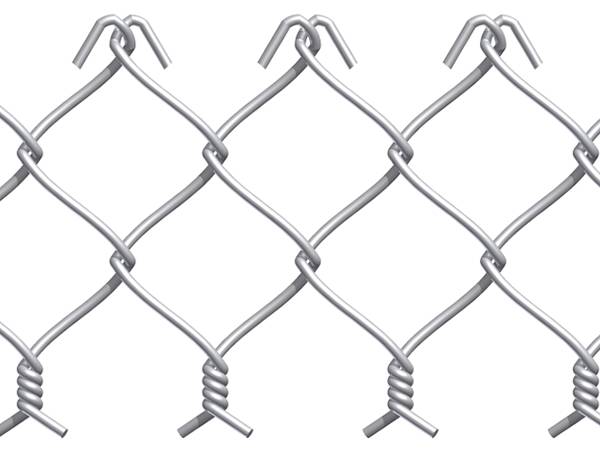

A piece of chain link fencing fabric with one twisted and one knuckle edge on white background.

CLF-06: Twisted & knuckle edge

Accessories

  • Fence fittings
  • Fasteners
  • Barbed wire or razor wire
  • Gate
  • Gate fittings
  • Fence slats

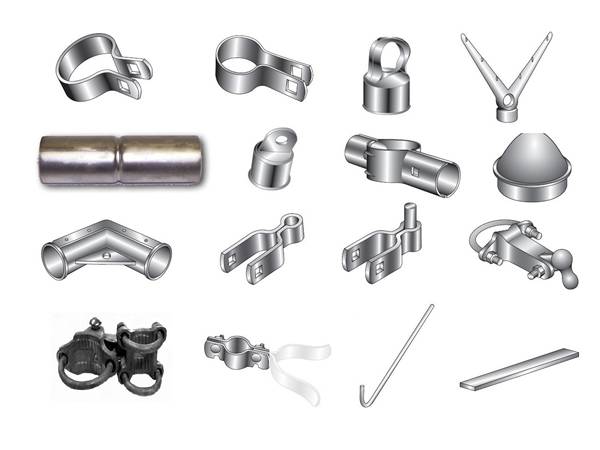

Several necessary fittings of chain link fence on white background.

CLF-07: Fence fittings & fasteners

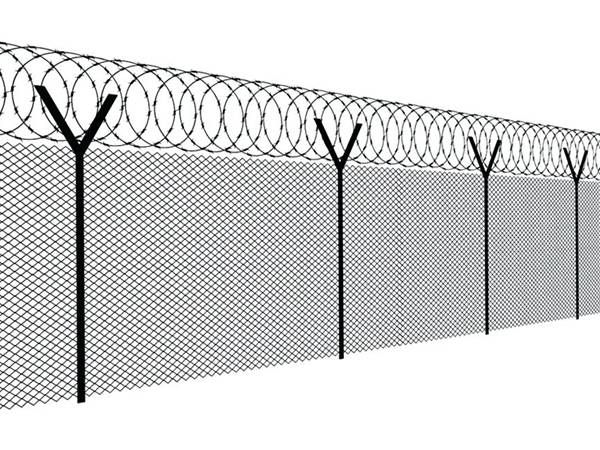

A line of razor wires are installed on the top of chain link fencing.

CLF-08: Razor wires

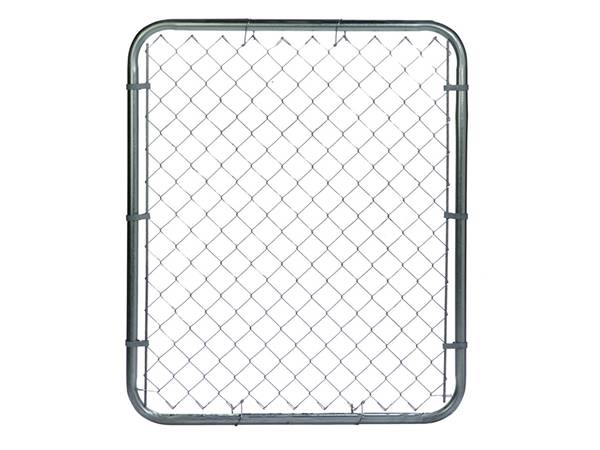

A single gate with galvanized chain link fencing fabric on white background.

CLF-09: Gate

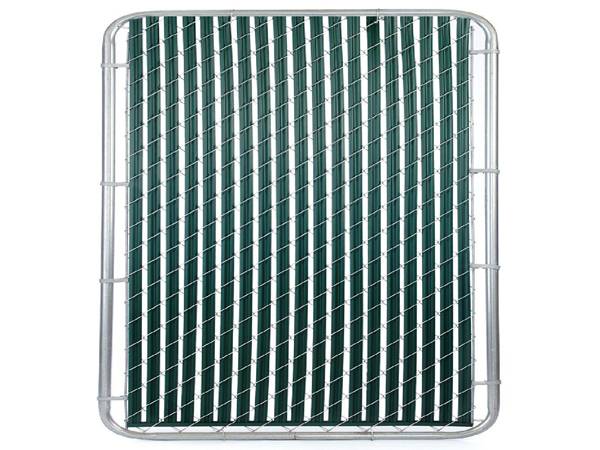

A piece of chain link fencing gate with green slats.

CLF-10: Slats

Specifications

  • Material: Galvanized steel wire or color coated steel wire.
  • Wire gauge: 12-1/2 gauge, 11-1/2 gauge, 11 gauge, 9 gauge, 6 gauge.
  • Mesh size: 3/8" to 2-3/8".
  • Available height: 3', 3.5', 4', 5', 6', 8', 10' and 12'.
  • Available length: Commonly is 50 line feet.
  • Applications: residential or commercial use.
Available Mesh Sizes & Wire Gauges of Chain Link Fencing Fabric
Mesh Size / Wire GaugeMesh Size / Wire Gauge 12-1/2 gauge 11-1/2 gauge 11 gauge 9 gauge 6 gauge
2-3/8"
2-1/4"
2"
1-3/4"
1-1/4"
1"
5/8"
1/2"
3/8"
Applications Residential Residential Residential & Commercial Commercial Commercial

Note: Any special specifications can be free customized according to customers' requirements.

Contact and tell us your requirements, you will get professional suggestions. CONTACT NOW

Features

  • Durable and corrosion & rust resistance. No matter galvanized or PVC coated chain link fencing fabric can protect fencing from corrosion and rust for more than 15 years.
  • Architectural colors. Brown, green and black are three popular and widely used fabric color. Other colors can be customized according to your requirements.
  • Maintenance free. It is no need to clean and maintain it, so it can save much more labor and costs.
  • Multiple application range. Residential, commercial and high security applications can adopts this fencing.
  • Complete accessories. Fence frame, fittings, barbed wires and other associated accessories can improve the security grade for site.
  • Privacy protection. Optional slats can protect your residence from unwanted peek.

Applications

  • Sport field.
  • Residences.
  • Garden.
  • Kindergarten.
  • Factory.
Galvanized chain link fencing are surrounding the park.

CLF-11: Park enclosure.

Black chain link fencing with black slats are surrounding the residential backyard.

CLF-12: Backyard privacy protection.

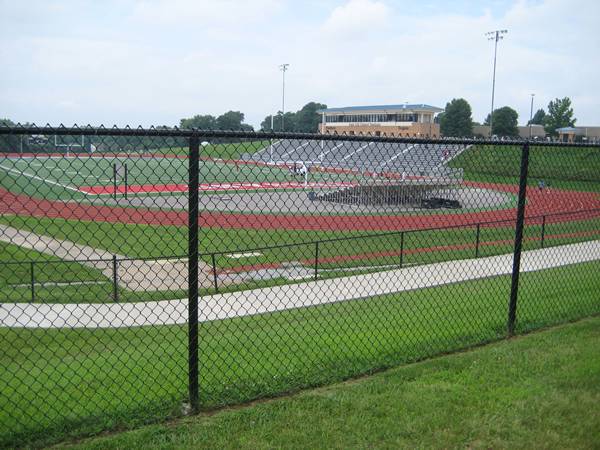

Black chain link fencing fabrics are surrounding the sport field.

CLF-13: Sport field boundary fence.

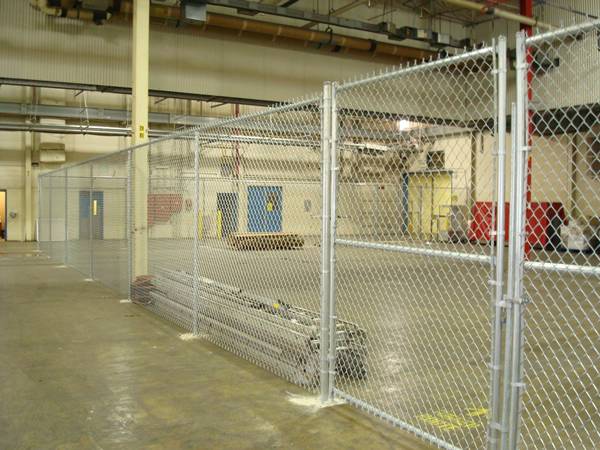

Galvanized chain link fencing are installed in the warehouse and several materials in it.

CLF-14: Warehouse partition fence.

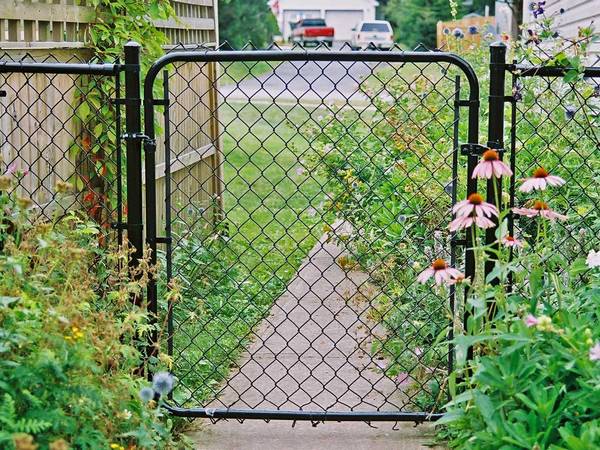

A single gate with chain link fence are installed entrance of garden.

CLF-15: Garden gate fencing.

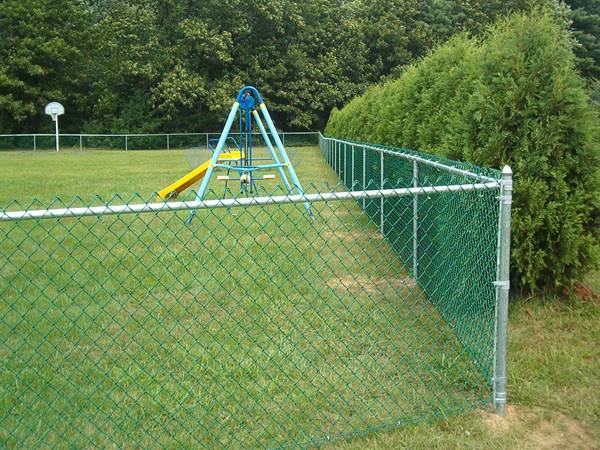

Green cyclone fencing is surrounding the grassland. A swing and a slid in it.

CLF-16: Kindergarten protection fence.
